Micro Limit Switch XZ7-110

Micro Limit Switch XZ7-110

  • Micro Limit Switch XZ7-110
Quick Details

●Adopt outer shell with intensive plastic and sealed construction,better mechanical stength and weater-proof and oil-proof;
● Side fixed form and swift contact;
● Variety of levers;
● Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.

Model & Meanings

Micro Limit Switch Model & Meanings

Mounting Holes & Contact Form

Micro Limit Switch Mounting Holes & Contact Form

Product Structure

Micro Limit Switch Product Structure


Item Data
Rating load 10A/250VAC
Operation speed 0.1mm-50cm/s
Operation frequency Mechanical 120times/min
Electrical 20次/分 20times/min
Insulation resistance 100mΩ以上(Above) DC500V
Contact resistance 25mΩ initial value
Withstand voltage Non-connection wire 1000VAC
Every terminal 1500VAC
Vibration Misoperation 10-55Hz Amplitude 1.5mm
Impact Durable 1000m/s2
Misoperation 300m/s2
Life Electrical 100,000次以上 above
Mechanical 1,000,000次以上 above
Protection degree IP65
Operating temperature -10~+80℃
Operating humidity <85%

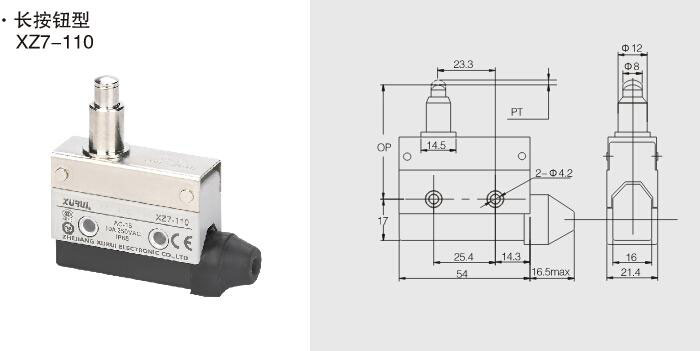

Dimensions/Operating Characteristics

 Micro Limit Switch Dimensions/Operating Characteristics

OF max. 500g(4.9N)
RF min. 100g(0.98N)
PT max. 2mm
OT min. 5mm
MD max. 0.8mm
OP 48±0.8mm
