You're designing a safety interlock for a compact machine enclosure, and the space between the door and the frame is measured in millimeters. A standard safety switch won't fit, but you still need reliable locking and status monitoring. An Electromagnetic Lock Switch designed for tight installations solves this problem. The XEL-S series from Xurui is an ultra-compact electromagnetic safety door switch with a 1300N locking force, designed specifically for industrial automation systems where installation space is limited. This article explains what makes it suitable for space-constrained applications, how the locking and monitoring functions work, and what to verify before specifying one for your machine safety circuit.
What Makes This Switch Suitable for Compact Installations?

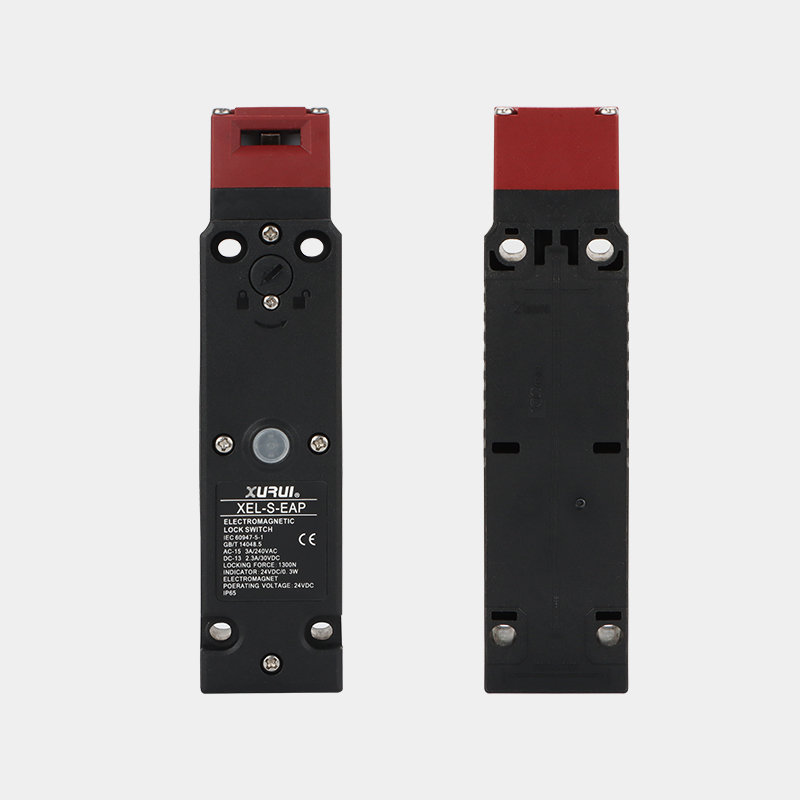

The XEL-S is built around an ultra-compact form factor that fits into small devices and restricted installation spaces. Despite its size, it delivers a locking force of 1300N, ensuring secure door locking during equipment operation and preventing unintended access. The housing is available in metal (M) or resin (P) options, and the switch accepts cable entry through M20 or PG13.5 glands. The compact design doesn't compromise on contact configuration: the switch includes two sets of gold-plated silver alloy contacts, suitable for signal and low-power control circuits.
Locking Force in a Small Package
The 1300N locking force provides secure door retention even in a package small enough to fit compact enclosures. This is achieved through a mechanical locking mechanism that engages when the door is closed and the switch is energized.
Contact Configuration Options for Flexible Wiring
The switch offers six contact combinations, including configurations like 1NC, 2NC, and 1NC/1NO. This flexibility supports both basic safety monitoring and more complex wiring needs, allowing the switch to be integrated into different safety circuit architectures.
How Does the Locking and Unlocking Mechanism Work?
The XEL-S supports DC24V electromagnetic unlocking with mechanical release options. The locking mode can be configured as either electromagnetic lock with mechanical release, or mechanical lock with electromagnetic release. This dual-mode capability means the switch can be adapted to different safety philosophies: fail-safe (power to unlock) or fail-secure (power to lock), depending on the application requirements. A built-in LED status indicator provides visual confirmation of the switch state, simplifying troubleshooting and verification during maintenance.
Electromagnetic vs. Mechanical Locking Modes
The E mode provides electromagnetic unlocking with mechanical locking (fail-secure when de-energized). The M mode provides mechanical unlocking with electromagnetic locking (fail-safe when de-energized). The choice depends on the risk assessment and the desired behavior during power loss.
Built-In Status Indication
The integrated LED indicator shows whether the switch is locked or unlocked, allowing operators and maintenance personnel to verify the safety state without opening the enclosure or using diagnostic tools.
What Key Types Are Available for Different Door Structures?
The XEL-S is compatible with 11 different key types, covering T-shaped, L-shaped, and adjustable designs. This range accommodates various machine door structures, from standard sliding doors to hinged panels and adjustable actuators. The key insertion directions include five options, providing flexibility in how the switch is mounted relative to the door movement. The compatible key families include X-K1 through X-K8, with variations for buffered and long-form factors.
| Parameter | Specification |
|---|---|
| Model | XEL-S Series |
| Locking Force | 1300N |
| Lock/Unlock Mode | Electromagnetic lock / mechanical release, or reverse |
| Contact Configuration | 2 sets, 6 combinations (1NC, 2NC, 1NC/1NO, etc.) |
| Contact Material | Gold-plated silver alloy |
| Unlocking Voltage | DC24V |
| Cable Entry | M20 / PG13.5 |
| Housing Material | Metal (M) or Resin (P) |
| Key Insertion Directions | 5 directions |
| Compatible Keys | X-K1 to X-K8 (11 types total) |
| Mounting | Screw mounted |
| Indicator | Built-in LED |
Key Selection for Different Door Designs
The T-shaped keys suit standard door actuators, while L-shaped keys accommodate side-mounted doors. Adjustable keys (X-K5, X-K6) provide horizontal or vertical adjustment for alignment during installation. The hemispherical multi-function key (X-K8) suits applications with misalignment risk.
Mounting and Installation Flexibility
The switch mounts with screws and accepts key insertion from five directions. This flexibility simplifies installation in compact enclosures where access is restricted and alignment is critical.
Where Does a Compact Safety Switch Deliver the Most Value?
The XEL-S serves industrial automation systems where space is limited but safety monitoring cannot be compromised. The switch is suitable for compact machine safety doors, access control on electronic assembly lines and testing stations, limited-space installations in safety circuits, and local safety locking at end-of-line automation.
-
Compact machine safety doors — interlocking small enclosures and access panels
-
Electronic assembly lines — access control on test stations and assembly cells
-
Limited-space safety circuits — installations where standard switches don't fit
-
End-of-line automation — local safety locking for robotic cells and packaging stations
-
Testing stations — monitoring door status on equipment with frequent access
Compact Machine and Assembly Line Applications
Assembly lines and testing stations often have small access doors that still require safety interlocking. The XEL-S provides 1300N locking force and dual-channel monitoring in a package that fits these restricted spaces.
[H3] End-of-Line Automation and Robotic Cells
Robotic cells and end-of-line packaging equipment require safety door switches that can withstand frequent cycling and provide reliable status feedback. The gold-plated contacts and LED indicator support these demanding applications.
Common Questions About Safety Door Switches
What is the locking force of the XEL-S?
The locking force is 1300N, providing secure door retention during equipment operation.
What contact configurations are available?
The switch offers six contact combinations, including 1NC, 2NC, and 1NC/1NO configurations. The contact material is gold-plated silver alloy, suitable for signal and low-power circuits.
How many key types are compatible?
The XEL-S is compatible with 11 key types from the X-K1 through X-K8 families, covering T-shaped, L-shaped, and adjustable designs.
What maintenance does the switch require?
The switch requires periodic functional testing to verify the locking and monitoring functions. Check for debris or dust accumulation on the actuator and key insertion area, and verify the LED indicator operates correctly. The gold-plated contacts resist wear, but should be inspected if the switch experiences frequent cycling.
Request a Safety Switch Configuration for Your Machine
An Electromagnetic Lock Switch with 1300N locking force, gold-plated contacts, and 11 compatible key types is the practical choice for compact industrial safety door applications where space is limited but safety cannot be compromised. The XEL-S from Xurui delivers 1300N locking force, DC24V electromagnetic unlocking, 2 sets of gold-plated silver alloy contacts, 6 contact combinations, and compatibility with 11 key types. Contact Xurui for a safety switch configuration assessment → their team can help you select the right contact configuration, housing material, and key type for your specific machine door application.
