Micro Limit Switch XZ7-100

Micro Limit Switch XZ7-100

  • Micro Limit Switch XZ7-100
Quick Details

●Adopt outer shell with intensive plastic and sealed construction,better mechanical stength and weater-proof and oil-proof;
● Side fixed form and swift contact;
● Variety of levers;
● Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.

Model & Meanings

Micro Limit Switch model & meanings

Mounting Holes & Contact Form

Micro Limit Switch mounting holes & contact from

Product Structure

Micro Limit Switch product structure


Item Data
Rating load 10A/250VAC
Operation speed 0.1mm-50cm/s
Operation frequency Mechanical 120times/min
Electrical 20times/min
Insulation resistance 100mΩ(Above) DC500V
Contact resistance 25mΩ initial value
Withstand voltage  Non-connection wire 1000VAC
Every terminal 1500VAC
Vibration Misoperation 10-55Hz Amplitude 1.5mm
Impact Durable 1000m/s2
Misoperation 300m/s2
Life Electrical 100,000次以上 above
Mechanical 1,000,000次以上 above
Protection degree IP65
Operating temperature -10~+80℃
Operating humidity <85%

Dimensions/Operating Characteristics

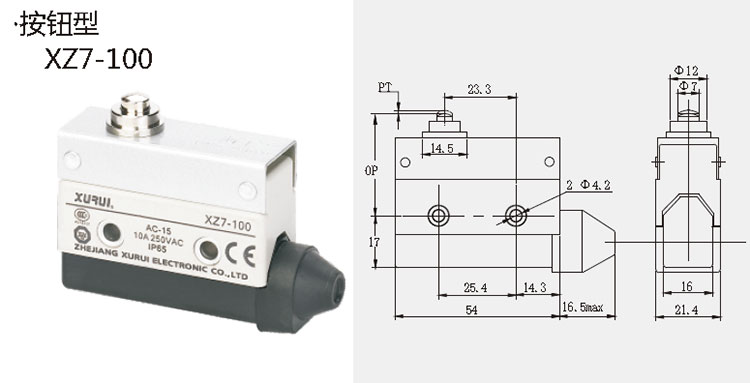

 Micro Limit Switch Dimensions/Operating Characteristics

OF max. 950g(9.31N)
RF min. 200g(1.96N)
PT max. 1.8mm
OT min. 0.5mm
MD max. 0.5mm
OP 30.8±0.6mm
