Micro Limit Switch XZ7-120

Micro Limit Switch XZ7-120

  • Micro Limit Switch XZ7-120
Quick Details

●Adopt outer shell with intensive plastic and sealed construction,better mechanical stength and weater-proof and oil-proof;
● Side fixed form and swift contact;
● Variety of levers;
● Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.

Model & Meanings

Mounting Holes & Contact Form

Product Structure


Item 项目 参数值 Data
Rating load 额定负荷 10A/250VAC
Operation speed 操作速度 0.1mm-50cm/s
Operation frequency 操作频率 机 械  Mechanical 120次/分 120times/min
电 气  Electrical 20次/分 20times/min
Insulation resistance 绝缘电阻 100mΩ以上(Above) DC500V
Contact resistance 接触电阻 25mΩ初值 initial value)
Withstand voltage 介质耐压 非连线  Non-connection wire 1000VAC
各端子间  Every terminal 1500VAC
Vibration 振动 误动作 Misoperation 10-55Hz Amplitude(复振幅)1.5mm
Impact 冲击 耐 久 Durable 1000m/s2
误动作  Misoperation 300m/s2
Life 寿命 电 气  Electrical 100,000次以上 above
机 械  Mechanical 1,000,000次以上 above
Protection degree 防护等级 IP65
Operating temperature 使用温度 -10~+80℃
使用湿度 Operating humidity <85%

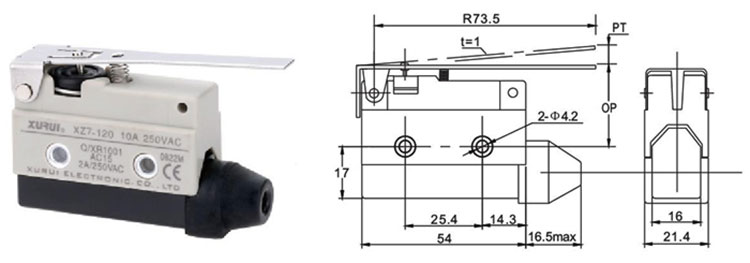

Dimensions/Operating Characteristics


OF max.动作力 100g(0.98N)
RF min.回复力 20g(0.2N)
PT max.预行程 6mm
OT min.超行程 4mm
MD max.差行程 2.6mm
OP 动作位置 27±1mm
