PDFQuick Details
·Strong structure, made of zinc metal alloy and plastics, easy to contact line;
·Small size, oil and water resistant ;
·Double way switch, double spring inner switch;
·Variety of levers;
·Widely used in Mechanical equipment ,automatic machine, and instrument, electro motion tool etc.
Model & Meanings
Contact Forms&Mounting Hole Dimensions&Product Structure
Specification
| 项目 Item | 参数值 Data | |
| 额定负荷 Rating load | 5 A/ 250 VAC | |
| 操作速度 Operation speed | 5 mm- 50 cm/ s | |
| 操作频率 Operation frequency | 机 械 Mechanical | 120次/分 120times/min |
| 电 气 Electrical | 30次/分 30times/min | |
| 绝缘电阻 Insulation resistance | 100mΩ以上(Above) DC500V | |
| 绝缘电阻 Contact resistance | 25mΩ初值 initial value) | |
| 介质耐压 Withstand voltage | 非连线 Non-connection wire | 1000VAC |
| 各端子间 Every terminal | 1500VAC | |
| 振动 Vibration | 误动作 Misoperation | 10-55Hz Amplitude（复振幅）1.5mm |
| 冲击 Impact | 耐 久 Durable | 1000m/s2 |
| 误动作 Misoperation | 300m/s2 | |
| 寿命 Life | 电 气 Electrical | 100,000次以上 above |
| 机 械 Mechanical | 1,000,000次以上 above | |
| 防护等级 Protection degree | IP65 | |
| 使用温度 Operating temperature | - 20 ~+ 60℃ | |
| 使用湿度 Operating humidity | <85% | |

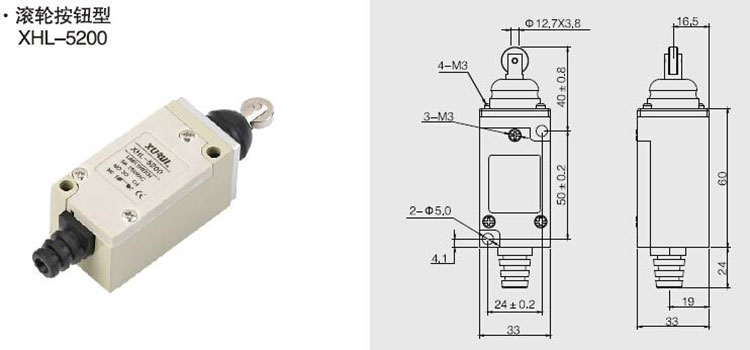

Dimensions/Operating Characteristics
| OF max.动作力 | 700g(6.86N) |
| RF min.回复力 | 180g(1.76N) |
| PT max.预行程 | 2.5mm |
| OT min.超行程 | 3mm |
| MD max.差行程 | 1.2mm |
| TT 总行程 | 5.8mm |
