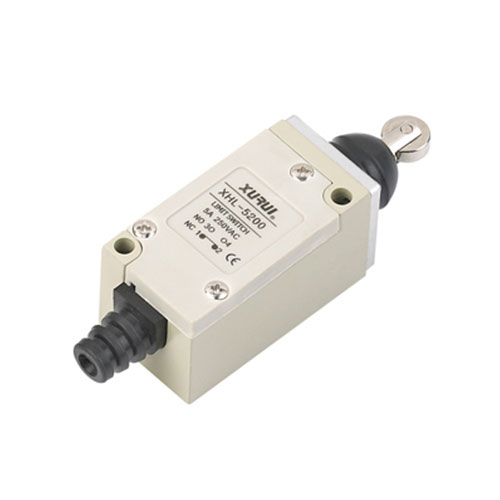

Quick Details
·Strong structure, made of zinc metal alloy and plastics, easy to contact line;
·Small size, oil and water resistant ;
·Double way switch, double spring inner switch;
·Variety of levers;
·Widely used in Mechanical equipment ,automatic machine, and instrument, electro motion tool etc.
Model & Meanings

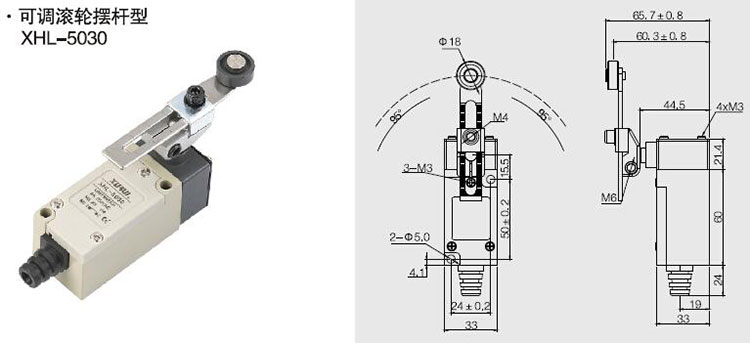

Contact Forms&Mounting Hole Dimensions&Product Structure
Specification
项目 Item | 参数值 Data | |
额定负荷 Rating load | 5 A/ 250 VAC | |
操作速度 Operation speed | 5 mm- 50 cm/ s | |
操作频率 Operation frequency | 机 械 Mechanical | 120次/分 120times/min |
电 气 Electrical | 30次/分 30times/min | |
绝缘电阻 Insulation resistance | 100mΩ以上(Above) DC500V | |
绝缘电阻 Contact resistance | 25mΩ初值 initial value) | |
介质耐压 Withstand voltage | 非连线 Non-connection wire | 1000VAC |
各端子间 Every terminal | 1500VAC | |
振动 Vibration | 误动作 Misoperation | 10-55Hz Amplitude(复振幅)1.5mm |
冲击 Impact | 耐 久 Durable | 1000m/s2 |
误动作 Misoperation | 300m/s2 | |
寿命 Life | 电 气 Electrical | 100,000次以上 above |
机 械 Mechanical | 1,000,000次以上 above | |
防护等级 Protection degree | IP65 | |
使用温度 Operating temperature | - 20 ~+ 60℃ | |
使用湿度 Operating humidity | <85% |
Dimensions/Operating Characteristics
OF max.动作力 | 500g(4.9N) |
RF min.回复力 | 80g(0.78N) |
PT max.预行程 | 30° |
OT min.超行程 | 70° |
MD max.差行程 | 15° |
TT 总行程 | 90° |
