waterproof limit switch XHL5300

waterproof limit switch XHL5300

Information
  • waterproof limit switch XHL5300
Quick Details

·Strong structure, made of zinc metal alloy and plastics, easy to contact line;
·Small size, oil and water resistant ;
·Double way switch, double spring inner switch;
·Variety of levers;
·Widely used in Mechanical equipment ,automatic machine, and instrument, electro motion tool etc.

Model & Meanings

Contact Forms&Mounting Hole Dimensions&Product Structure

Specification

项目  Item 参数值  Data
额定负荷 Rating load 5 A/ 250 VAC
操作速度 Operation speed 5 mm- 50 cm/ s
操作频率 Operation frequency 机 械  Mechanical 120次/分 120times/min
电 气  Electrical 30次/分 30times/min
绝缘电阻 Insulation resistance 100mΩ以上(Above) DC500V
绝缘电阻 Contact resistance 25mΩ初值 initial value)
介质耐压 Withstand voltage 非连线  Non-connection wire 1000VAC
各端子间  Every terminal 1500VAC
振动 Vibration 误动作 Misoperation 10-55Hz Amplitude(复振幅)1.5mm
冲击 Impact 耐 久 Durable 1000m/s2
误动作  Misoperation 300m/s2
寿命 Life 电 气  Electrical 100,000次以上 above
机 械  Mechanical 1,000,000次以上 above
防护等级 Protection degree IP65
使用温度 Operating temperature - 20 ~+ 60℃
使用湿度 Operating humidity <85%

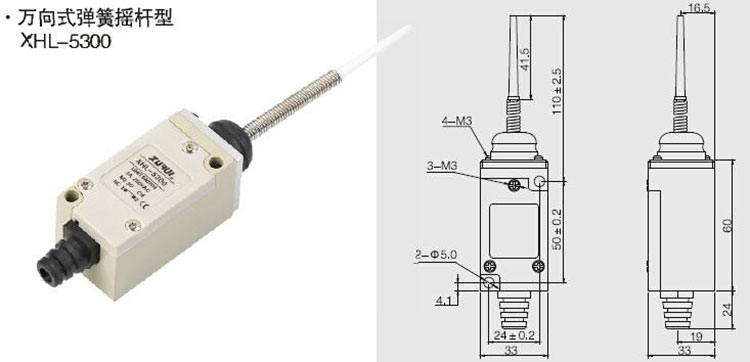

Dimensions/Operating Characteristics

OF max.动作力 100g(4.9N)
RF min.回复力 30g(0.29N)
PT max.预行程 28mm
OT min.超行程 20mm
MD max.差行程 10mm
TT 总行程 48mm
