Overview
The post fire hydrant is used to provide fire protection water and is a necessary facility for building outdoor fire protection in towns / streets / mining enterprises / warehouses, institutions, schools / hospitals, etc.The medium is water or foam mixture. The product is installed in the outdoor fire fighting equipment, usually installed in public places of the factory warehouse, wharf, warehouse, edifice, and densely populated areas, and meet the needs of fire products, reasonable structure, reliable performance, convenient use, it will help you cope with the disaster may occur at any time.
Technical parameters

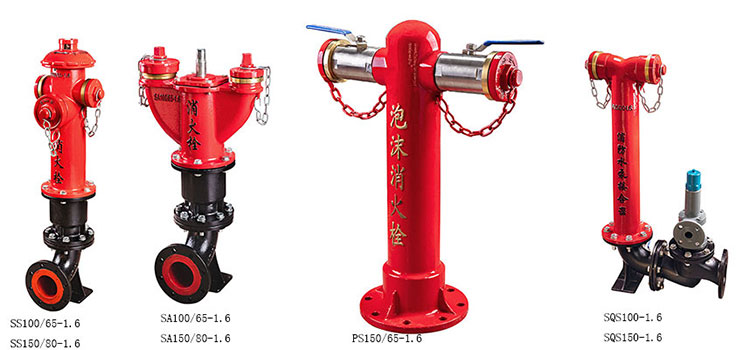

| Product name | Model | Nominal pressure（MPa） | Nominal diameter | outlet | water intake |
||
| Type | Caliber | Number | |||||
| Ground type outdoor hydrant | SS100/65-1.6 | 1.6 | 100 | Extemal thread fixed interface Extemal thread |
65 | 2 | Flange and socket type Bending is available forusers to choose (DN100,DN150) |
| 100 | 1 | ||||||
| Ground type outdoor hydrant | SS150/80-1.6 | 100 | Extemal thread fixed interface Extemal thread |
80 | 2 | ||
| 150 | 1 | ||||||
| Underground outdoor hydrant | SA100/65-1.6 | 100 | Extemal thread fixed interface Extemal thread |
65 | 1 | ||
| 100 | 1 | ||||||
| Underground outdoor hydrant | SA150/80-1.6 | 100 | Extemal thread fixed interface Extemal thread |
80 | 1 | ||
| 150 | 1 | ||||||
