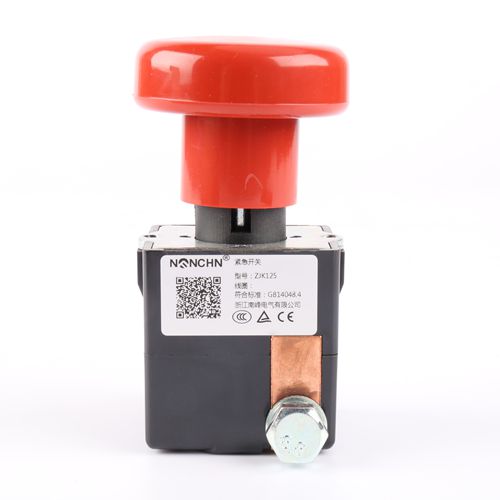

You're designing a battery-powered vehicle or industrial equipment, and the emergency stop system needs to work instantly—every time. An emergency switch that fails to disconnect power in a critical moment can turn a minor issue into a major accident. The ZJK125 type emergency power-off switch was engineered with speed and reliability as the priority: a mechanical limit design for positive engagement, a red mushroom head actuator for immediate visual recognition, and a 50ms disconnection time that stops power flow before problems escalate. This article walks through what makes this switch a practical choice for DC power systems—from its 125A continuous rating to its IP50 protection grade that withstands industrial environments.
Questions Equipment Engineers Ask About Emergency Stop Switches
Two Practical Concerns—Answered Up Front
Q: What electrical ratings does this emergency switch support?
A: The ZJK125 is rated for a 125A continuous contact current with a maximum voltage of ≤80V DC. It can handle 600A instantaneous closing current for up to 1 second, providing the margin needed for motor inrush and fault conditions. The voltage drop across contacts is ≤80mV at 100A, ensuring efficient power transfer.
Q: How does the mechanical design ensure reliable operation?
A: The switch adopts a mechanical limit design with a red mushroom head handle for quick visual identification and positive actuation. The manual operation requires 20-30N of force to engage or disengage, providing tactile feedback that confirms the switch has operated.
Mechanical Limit Design — The Foundation of Reliable Switching
The ZJK125 features a mechanical limit design that ensures the switch stays in its selected position until intentionally actuated. This isn't a design that can drift or vibrate out of position—it locks firmly into place.
Positive Engagement That Prevents Accidental Disconnection
The mechanical limit mechanism provides a positive engagement that keeps the switch in either the closed or open position. Unlike momentary switches that can be accidentally bumped, the ZJK125 requires deliberate force to change state. The red mushroom head actuator is instantly recognizable, ensuring that any operator—regardless of training—can identify and operate the emergency stop in a crisis.
Tactile Feedback for Confident Operation
With a closed pull force and disconnect thrust of 20-30N, the switch provides clear tactile feedback. Operators feel when the switch has engaged or disengaged—there's no ambiguity about whether the emergency stop has been activated. This tactile certainty is critical in high-stress situations where visual confirmation may not be immediate.
50ms Disconnection — Speed That Prevents Accidents
In an emergency, milliseconds matter. The ZJK125 delivers a normal disconnection time of ≤50ms—fast enough to prevent most faults from escalating.
What 50ms Means for Your Equipment
When a fault occurs, every millisecond of delay allows current to continue flowing, potentially causing damage to components or creating safety hazards. At 50ms, the ZJK125 interrupts the circuit before most overcurrent protection devices can even begin to respond. This speed is particularly critical in DC systems where arcs are more difficult to extinguish than in AC circuits.
Fast Closing for Controlled Restoration
The switch also features a normal closing time of ≤100ms, allowing for quick restoration of power once the emergency condition has been resolved. This balance—fast disconnection for safety, controlled closing for operational efficiency—makes the ZJK125 suitable for applications where downtime costs are significant.
125A Continuous Rating — Power for Demanding Applications
The ZJK125 is rated for 125A continuous current with an instantaneous maximum of 600A for ≤1 second. This rating covers a wide range of DC power applications.
Battery Vehicles and Electric Forklifts
The switch is widely used in battery vehicles, electric forklifts, electric vehicles, and excavators. In these applications, the emergency switch must handle the high currents demanded by traction motors while providing reliable disconnection in the event of a fault. The 125A rating covers most material handling equipment and light electric vehicles.
600A Instantaneous Capacity for Motor Inrush
DC motors draw significantly higher current during startup than during normal operation. The 600A instantaneous rating provides the margin needed to handle motor inrush and short-circuit conditions without nuisance tripping, while still disconnecting the circuit when a real fault occurs.
Durability and Environmental Performance
The ZJK125 is built for the demands of industrial and mobile equipment, with specifications that ensure reliable operation across a range of conditions.
Mechanical and Electrical Life
The switch offers ≥200,000 mechanical cycles and ≥10,000 electrical cycles. This endurance ensures the switch remains functional throughout the service life of the equipment, even in applications with frequent emergency stop actuations.
IP50 Protection for Industrial Environments
With an IP50 protection grade, the switch is protected against dust ingress and is suitable for installation in industrial environments. The operating temperature range of -25°C to +55°C covers everything from cold warehouses to hot production floors.
Vibration and Impact Resistance
The switch is rated for 2.5g vibration at 5-50Hz and 50g impact for 11ms (half sine). This ruggedness ensures the switch remains operational even in mobile equipment subject to rough terrain and heavy vibration.
Technical Specifications at a Glance — ZJK125
| Parameter | ZJK125 Specification |
|---|---|
| Contact Type | One pair of bridge type |
| Rated Contact Current | 125A |
| Rated Contact Voltage | ≤80V DC |
| Instantaneous Max Current | 600A, ≤1s |
| Voltage Drop | ≤80mV (at 100A) |
| Insulation Resistance | ≥100MΩ (DC500V) |
| Dielectric Withstand Voltage | 1500V, 1min |
| Normal Disconnection Time | ≤50ms |
| Normal Closing Time | ≤100ms |
| Mechanical Cycles | ≥200,000 |
| Electrical Cycles | ≥10,000 |
| Disconnect Thrust | 20.0≤F1≤30.0N |
| Closed Pull Force | 20.0≤F2≤30.0N |
| Contact Material | AgCuO(10)/Cu |
| Protection Grade | IP50 |
| Operating Temperature | -25°C to +55°C |
| Vibration | 2.5g, (5-50)Hz |
| Impact | 50g, 11ms (half sine) |
Where the ZJK125 Fits Best
The ZJK125 serves multiple applications where reliable emergency power disconnection is essential:
Battery-Powered Vehicles
The switch is widely used in battery vehicles, electric forklifts, and electric cars. In these applications, the emergency switch provides a visible, accessible means of disconnecting the battery in the event of a fault or accident.
Industrial Equipment and Excavators
The ZJK125 is also used in excavators and other industrial equipment. The rugged construction and vibration resistance make it suitable for heavy machinery where reliability is critical.
DC Power Distribution Systems
The switch is used to disconnect the power supply in an emergency to prevent accidents from spreading. In DC power distribution systems, the ZJK125 provides a manual disconnect point that can be operated by any personnel in an emergency.
Straight Answers on Emergency Switches
Q: What is the maximum current rating of the ZJK125?
A: The switch is rated for 125A continuous current with an instantaneous maximum of 600A for ≤1 second.
Q: What is the operating voltage range?
A: The switch is rated for ≤80V DC.
Q: How fast does the switch disconnect power?
A: The normal disconnection time is ≤50ms, ensuring fast response in emergency situations.
Q: What is the mechanical life of the switch?
A: The switch is rated for ≥200,000 mechanical cycles.
Q: What is the protection grade?
A: The switch carries an IP50 protection grade.
Q: What contact material does the switch use?
A: The contacts are made from AgCuO(10)/Cu, providing excellent resistance to welding and arcing.
Q: Who manufactures the ZJK125?
A: The switch is manufactured by Nanfeng, a supplier of DC contactors and emergency switches for industrial and mobile applications.
Request a Quote for Your Emergency Stop Solution
An emergency switch that combines mechanical limit design, fast disconnection, and high current capacity is the foundation of any safe DC power system. The ZJK125 type emergency power-off switch delivers 125A continuous rating with 600A instantaneous capacity, ≤50ms disconnection time for rapid response, mechanical limit design with red mushroom head actuator, and rugged construction with IP50 protection and vibration resistance.
Whether you're designing battery vehicles, electric forklifts, or industrial DC power systems, the ZJK125 offers the reliability and performance that safety engineers require. With proven durability in demanding applications and specifications that meet the needs of mobile and industrial equipment, it's built for the conditions you face every day.
Contact the manufacturer for a quote or technical consultation → their team can help you select the right mounting configuration and verify compatibility with your specific DC power system requirements. Get an emergency switch that protects your equipment and your people.
