PA-290A Plastic shell electric alarm

PA-290A Plastic shell electric alarm

Information
  • PA-290A Plastic shell electric alarm
Quick Details

Summary

It is suitable for transmitting signals in small lift,transporter, small ship machinery warehouse etc. shell color: grey.Material:Steel and ABS resin.Insulation impedance:100M,Withstand voltage: 50OVAC, The power reaches 40W.Protection degree:IP44

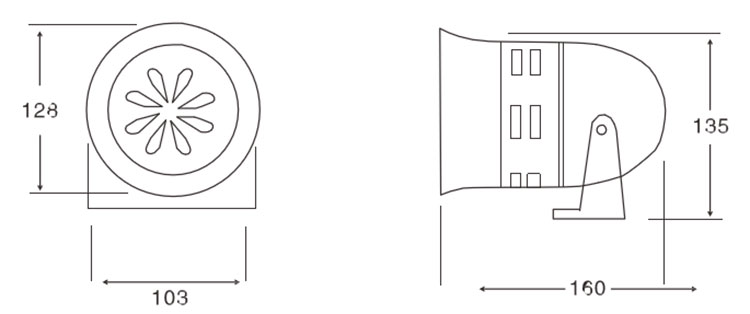

Overall dimensions



Product features

Special motor:High quality motor,rotating speed up to 10000 rps.
Duration:Sustainable working time to over 40 minutes

Product parameters

Model Power dB(A)1m Voice audition Optional voltage Optional color Current Frequency Material Insulation
impedance
Withstand voltage Protection
degree
PA-290 40W 112 1 DC12V
DC24V
AC110V
AC220V
gray 5.8,2.1
1.6,0.8
60 Impact resistant high
quality ABS resin
100MΩ
(at 500VDC)
500VAC,
50/60Hz in 1 minute
IP44
