PA-190 Motor alarm

PA-190 Motor alarm

Information
  • PA-190 Motor alarm
Quick Details

Summary

It is suitable for transmitting signals in small lift,transporter,small ship machinery warehouse etc.Conventional color: red &grey.Material:Steel and ABS resin.Insulation impedance:100M,Withstand voltage:500V AC,The power reaches 40W.Protection degree:IP44

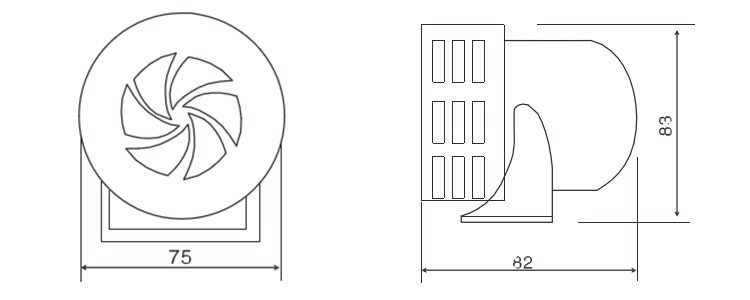

Overall dimensions

Product features

Special motor:High quality motor,rotating speed up to 10000 rps.
Duration:Sustainable working time to over 40 minutes

Product parameters

Model power dB(A)1m Voice andition Optional voltage Optionalcolor Current Frequency Material Insulation impedance Withstand voltage Protection degree
PA-190 40W 110 1 DC 12V
DC 24V
AC 110V
AC 220V
red & gray 6.00,2.50
0.90,0.43
50/60 SteelandABS resin 100MΩ(at 500 VDC) 500VAC,50/60HZ.in 1 minute  IP44
