SPST Toggle Switch XT-11B

SPST Toggle Switch XT-11B

Information
  • SPST Toggle Switch XT-11B
Quick Details

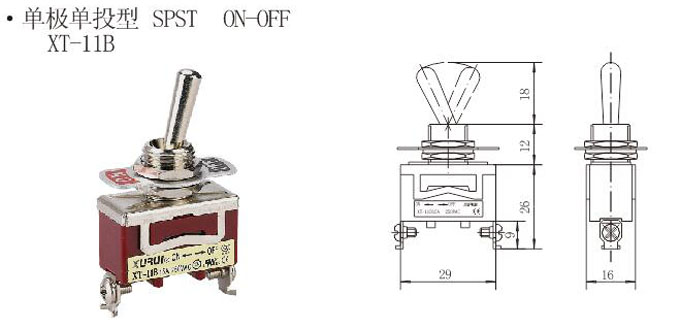

Dimensions

SPST Toggle Switch Dimensions

●Adopt thermoplastic crust,compact construction,and Simple installation;
●May install the protecting cap,can against oil and dustproof;
●Hand reset and automatic reset for flexible choice;
●Widely used in Electrical equipment,automatic machine,communication equipment and instrument,electro motion tool etc.

Model & Meanings

Mounting Holes & Product Structure

SPST Toggle Switch Mounting Holes & Product Structure

Item Data
Rating load MTS: 6A/125,250V
XT: 15A/250VAC, 25A/250VAC
Operation frequency 30times/min
Insulation resistance 100MΩ以上(Above) DC500V
Contact resistance 25mΩ( initial value)
Withstand voltage Non-connection wire 1000VAC
Every terminal 1500VAC
Vibration Misoperation 10-55Hz Amplitude 1.5mm
Impact Durable 1000m/s2
Misoperation 300m/s2
Life Electrical 100,000 above
Mechanical 500,000 above
Protection degree IP40
Operating temperature -25~+80℃

Terminal Forms

SPST Toggle Switch Terminal Forms
