SPDT Toggle Switch XT-13B

SPDT Toggle Switch XT-13B

Information
  • SPDT Toggle Switch XT-13B
Quick Details

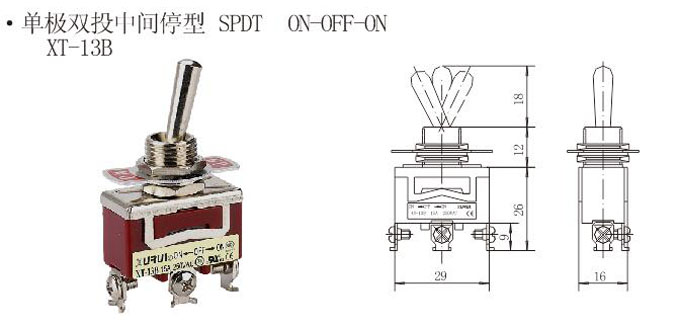

Dimensions

●Adopt thermoplastic crust,compact construction,and Simple installation;
●May install the protecting cap,can against oil and dustproof;
●Hand reset and automatic reset for flexible choice;
●Widely used in Electrical equipment,automatic machine,communication equipment and instrument,electro motion tool etc.

Model & Meanings

Mounting Holes & Product Structure

项目 Item 参数值  Data
额定负载 Rating load MTS: 6A/125,250V
XT: 15A/250VAC, 25A/250VAC
操作频率 Operation frequency 30次/分 30times/min
绝缘电阻 Insulation resistance 100MΩ以上(Above) DC500V
接触电阻 Contact resistance 25mΩ(初值 initial value)
介质耐压 Withstand voltage 非连线  Non-connection wire 1000VAC
各端子间  Every terminal 1500VAC
振动 Vibration 误动作  Misoperation 10-55Hz Amplitude(复振幅)1.5mm
冲击 Impact 耐 久  Durable 1000m/s2
误动作  Misoperation 300m/s2
寿命 Life 电 气  Electrical 100,000次以上 above
机 械  Mechanical 500,000次以上above
防护等级 Protection degree IP40
使用温度 Operating temperature -25~+80℃

Terminal Forms
