PDFQuick Details
●Adopt thermosetting plastic or thermoplastic;
●Small contact gap,snap action,high sensitivity and small operating travel;
●Variety of levers;
●Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro motion tool etc.
Model & Meanings
Contact Forms
Product Structure
Specification
| 项目 Item | 参数值 Data | |
| 额定负荷 Rating load | 5A/125VAC,3A/250VAC | |
| 操作速度 Operation speed | 0.1mm-1m/s | |
| 操作频率 Operation frequency | 机 械 Mechanical | 400次/分 400times/min |
| 电 气 Electrical | 30次/分 30times/min | |
| 绝缘电阻 Insulation resistance | 100mΩ以上(Above) DC500V | |
| 接触电阻 Contact resistance | 30mΩ初值 initial value) | |
| 介质耐压 Withstand voltage | 非连线 Non-connection wire | 1000VAC |
| 各端子间 Every terminal | 1500VAC | |
| 振动 Vibration | 误动作 Misoperation | 10-55Hz Amplitude（复振幅）1.5mm |
| 冲击 Impact | 耐 久 Durable | 1000m/s2 |
| 误动作 Misoperation | 300m/s2 | |
| 寿命 Life | 电 气 Electrical | 100,000次以上 above |
| 机 械 Mechanical | 1,000,000次以上 above | |
| 防护等级 Protection degree | IP40 | |
| 使用温度 Operating temperature | -25~+80℃ | |
| 使用湿度 Operating humidity | <85% | |

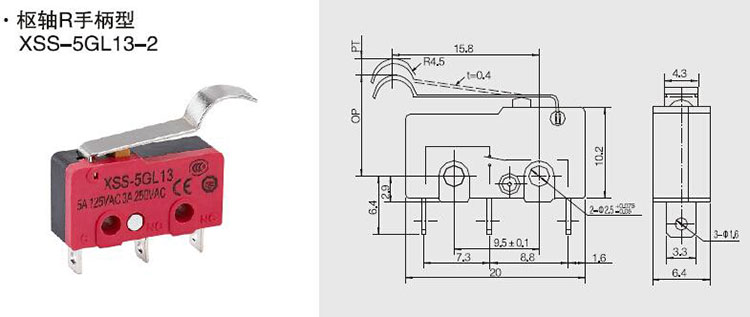

Dimensions/Operating Characteristics
| OF max.动作力 | 70g(0.7N) |
| RF min.回复力 | 10g(0.1N) |
| PT max.预行程 | 2.0mm |
| OT min.超行程 | 0.8mm |
| MD max.差行程 | 0.8mm |
| OP 动作位置 | 12.5±0.6mm |
