JL Series Fire Alarm

JL Series Fire Alarm

  • JL Series Fire Alarm
  • JL Series Fire Alarm
Quick Details

Product Introduction and Application:

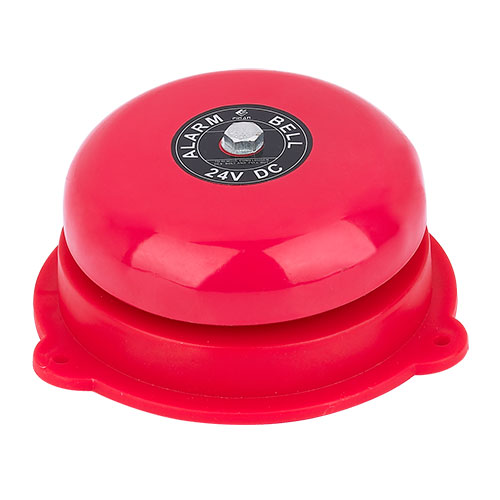

JL series fire alarm bell has a simple stucture and red coated steel casing,with novel pattern and easy installation IT is applicable to the fire alarm equipment of fatory, workshop, hotel as well as large and medium sized buildings Under nominal voltage,the alarm sounds clearly and continuously.

Main Parameters

Model JL Series Fire Alarm
Working Voltage 85%~100% Rated Voltage
Acousting Pressure Level 75~115dB(Horizontal 3meters)
Working Temperature -10℃~50℃
Working Relative humidity ≤95RH(25°)

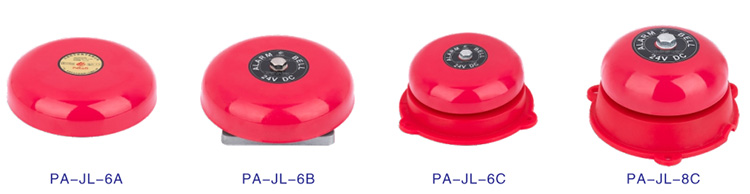

Model Rated Working Voltage Power(W) Imch size Metric size
PAJL-4B DC24V/AC220V ≤6 4 100mm
PAJL-4C DC24V/AC220V ≤6 4 100mm
PAJL-6A DC24V/AC220V ≤6 6 150mm
PAJL-6B DC24V/AC220V ≤6 6 150mm
PAJL-6C DC24V/AC220V ≤6 6 150mm
PAJL-8A DC24V/AC220V ≤6 8 200mm
PAJL-8B DC24V/AC220V ≤6 8 200mm
PAJL-8C DC24V/AC220V ≤6 8 200mm
PAJL-10A DC24V/AC220V ≤6 10 250mm
PAJL-10B DC24V/AC220V ≤6 10 250mm
PAJL-10C DC24V/AC220V ≤6 10 250mm

Remark:In addition to the above specifications,other models can be customized according to customer requirements

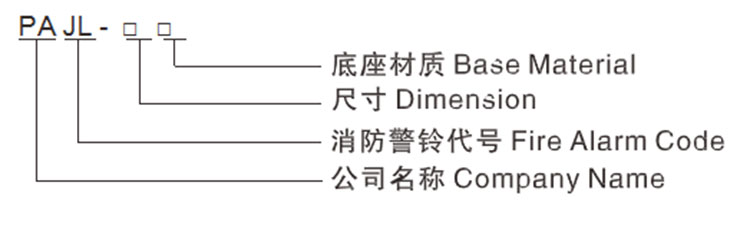

Disciption of Code
