PDFQuick Details
● Adopt thermostable phenolic plastic crust;
● Small contact gap,snap action,high sensitivity and small operating travel;
● Variety of levers;
● Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro motion tool etc.
Model & Meanings

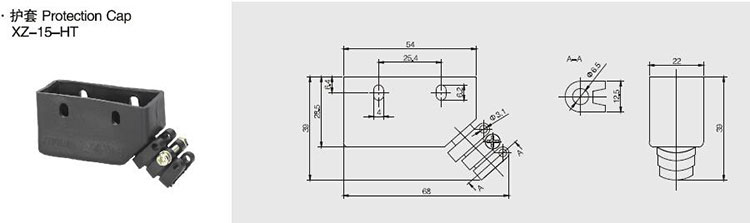

Mounting Hole Dimensions & Product Structure
Specification
| 项目 Item | 参数值 Data | |
| 操作速度 Operating speed | 1mm-1m/s | |
| 操作频率 Operating frequency | 机 械 Mechanical | 240次/分 240 times/min |
| 电 气 Electrical | 20次/分 20 times/min | |
| 绝缘电阻 Insulation resistance | 100MΩ以上(Above) DC500V | |
| 接触电阻 Contact resistance | 25mΩ(初值 initial value) | |
| 介质耐压 Withstand voltage | 非连线 Non-connection wire | 1000VAC |
| 各端子间 Every terminal | 1500VAC | |
| 振动 Vibration | 误动作 Misoperation | 10-55Hz Amplitude（复振幅）1.5mm |
| 冲击 Impact | 耐 久 Durable | 1000m/s2 |
| 误动作 Misoperation | 300m/s2 | |
| 寿命 Life | 电 气 Electrical | 100,000次以上 above |
| 机 械 Mechanical | 1,000,000次以上 above | |
| 防护等级 Protection degree | IP40 | |
| 使用温度 Operating temperature | -25~+80℃ | |
| 使用湿度 Operating humidity | <85% | |
| 额定值 Rating | ||
| 额定电压Ue(V) | 额定电流Ie(A) | 发热电流Ith(A) |
| AC-250 | 15 | 20 |
| AC-125 | 15 | 20 |
| DC-250 | 0.3 | 0.45 |
| DC-125 | 0.6 | 0.75 |
Contact Form
Terminal Form
Dimensions/Operating Characteristics
