Quick Details
● Adopt thermostable phenolic plastic crust;
● Small contact gap,snap action,high sensitivity and small operating travel;
● Variety of levers;
● Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro motion tool etc.
Model & Meanings

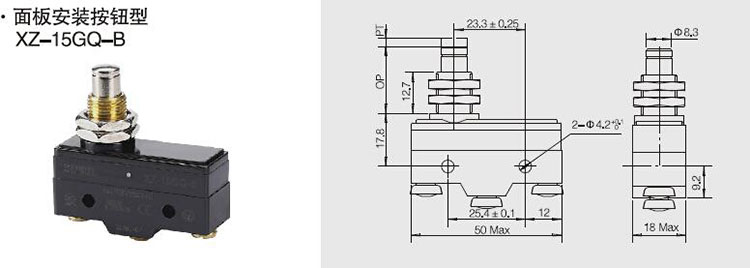

Mounting Hole Dimensions & Product Structure
Specification
项目 Item | 参数值 Data | |
操作速度 Operating speed | 1mm-1m/s | |
操作频率 Operating frequency | 机 械 Mechanical | 240次/分 240 times/min |
电 气 Electrical | 20次/分 20 times/min | |
绝缘电阻 Insulation resistance | 100MΩ以上(Above) DC500V | |
接触电阻 Contact resistance | 25mΩ(初值 initial value) | |
介质耐压 Withstand voltage | 非连线 Non-connection wire | 1000VAC |
各端子间 Every terminal | 1500VAC | |
振动 Vibration | 误动作 Misoperation | 10-55Hz Amplitude(复振幅)1.5mm |
冲击 Impact | 耐 久 Durable | 1000m/s2 |
误动作 Misoperation | 300m/s2 | |
寿命 Life | 电 气 Electrical | 100,000次以上 above |
机 械 Mechanical | 1,000,000次以上 above | |
防护等级 Protection degree | IP40 | |
使用温度 Operating temperature | -25~+80℃ | |
使用湿度 Operating humidity | <85% |
额定值 Rating | ||
额定电压Ue(V) | 额定电流Ie(A) | 发热电流Ith(A) |
AC-250 | 15 | 20 |
AC-125 | 15 | 20 |
DC-250 | 0.3 | 0.45 |
DC-125 | 0.6 | 0.75 |
Contact Form
Terminal Form
Dimensions/Operating Characteristics
OF max.动作力 | 350-450g(3.43-4.41N) |
RF min.回复力 | 114g(1.12N) |
PT max.预行程 | 0.5mm |
OT min.超行程 | 5mm |
MD max.差行程 | 0.1mm |
OP 动作位置 | 21.5±0.8mm |
