Micro Switch with Roller Lever XZ-15GW22-B

Micro Switch with Roller Lever XZ-15GW22-B

Information
  • Micro Switch with Roller Lever XZ-15GW22-B
Quick Details

● Adopt thermostable phenolic plastic crust;
● Small contact gap,snap action,high sensitivity and small operating travel;
● Variety of levers;
● Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro motion tool etc.

Model & Meanings

Model & Meanings

Mounting Hole Dimensions & Product Structure

Mounting Hole Dimensions & Product Structure

Specification

Item Data
Operating speed 1mm-1m/s
Operating frequency Mechanical 240 times/min
Electrical 20 times/min
Insulation resistance 100MΩ以上(Above) DC500V
Contact resistance 25mΩ(初值 initial value)
Withstand voltage Non-connection wire 1000VAC
Every terminal 1500VAC
Vibration Misoperation 10-55Hz  Amplitude 1.5mm
Impact Durable 1000m/s2
Misoperation 300m/s2
Life Electrical above 100,000
Mechanical above 1,000,000
Protection degree IP40
Operating temperature -25~+80℃
Operating humidity <85%



Rating
Ue(V) Ie(A) Ith(A)
AC-250 15 20
AC-125 15 20
DC-250 0.3 0.45
DC-125 0.6 0.75

 Contact Form

 Contact Form

Terminal Form

Terminal Form

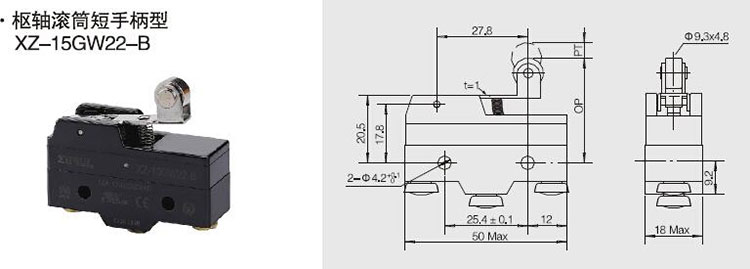

Dimensions/Operating Characteristics

Dimensions/Operating Characteristics

OF max. 180g(1.76N)
RF min. 42g(0.41N)
PT max. 3.2mm
OT min. 1.6mm
MD max. 0.5mm
OP 30.2±0.4mm
