micro lever switch with roller  XV-156-1C25

micro lever switch with roller XV-156-1C25

Information
  • micro lever switch with roller  XV-156-1C25
Quick Details

The micro lever switch with roller XV-156-1C25 is designed for precise control and reliable operation in a variety of applications. The switch features a lever arm that actuates the switch mechanism when moved, and a roller at the end of the lever that allows for smooth, low-friction actuation. The roller enables the switch to effectively interact with surfaces or components that may not be perfectly aligned, ensuring consistent performance and reducing long-term wear. This makes it particularly suitable for environments where space is limited and precise, repetitive switching is required, such as industrial machinery or automation systems.

●Adopt thermosetting plastic or thermoplastic;
●Small contact gap,snap action,high sensitivity and small operating travel;
●Variety of levers;
●Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro motion tool etc.

Model & Meanings

Contact Forms

Specification

Item Data
Operating speed 0.1mm-1m/s
Operating frequency Mechanical  600times/min
Electrical 30times/min
Insulation resistance 100MΩ(Above) DC500V
Contact resistance 25mΩ(initial value)
Withstand voltage Non-connection wire 1000VAC
Every terminal 1500VAC
Vibration Misoperation 10-55Hz Amplitude 1.5mm
Impact Durable 1000m/s2
Misoperation 300m/s2
Life Electrical above 100,000
Mechanical above 1,000,000
Protection degree IP40
Operating temperature -25~+80℃
Operating humidity <85%

Rating

Ue(V)  Ie(A)  Ith(A)
AC-250 16 20

Mounting Hole Dimensions & Strucutre



Terminal Forms

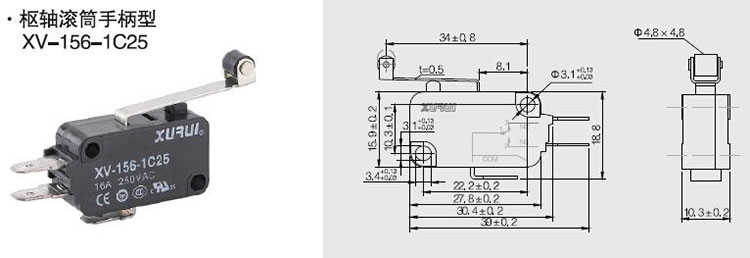

Dimensions/Operating Characteristics

OF max. 125g(1.23N)
RF min. 14g(0.14N)
PT max. 3.0mm
OT min. 1.2mm
MD max. 0.8mm
OP 20.5±1.2mm
