Micro Switch XSS-5

Micro Switch XSS-5

Information
  • Micro Switch XSS-5
Quick Details

●Adopt thermosetting plastic or thermoplastic;
●Small contact gap,snap action,high sensitivity and small operating travel;
●Variety of levers;
●Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro motion tool etc.

Model & Meanings

Contact Forms

Product Structure

Specification

项目  Item 参数值  Data
额定负荷 Rating load 5A/125VAC,3A/250VAC
操作速度 Operation speed 0.1mm-1m/s
操作频率 Operation frequency 机 械  Mechanical 400次/分 400times/min
电 气  Electrical 30次/分 30times/min
绝缘电阻 Insulation resistance 100mΩ以上(Above) DC500V
接触电阻 Contact resistance 30mΩ初值 initial value)
介质耐压 Withstand voltage 非连线  Non-connection wire 1000VAC
各端子间  Every terminal 1500VAC
振动 Vibration 误动作 Misoperation 10-55Hz Amplitude(复振幅)1.5mm
冲击 Impact 耐 久 Durable 1000m/s2
误动作  Misoperation 300m/s2
寿命 Life 电 气  Electrical 100,000次以上 above
机 械  Mechanical 1,000,000次以上 above
防护等级 Protection degree IP40
使用温度 Operating temperature -25~+80℃
使用湿度 Operating humidity <85%

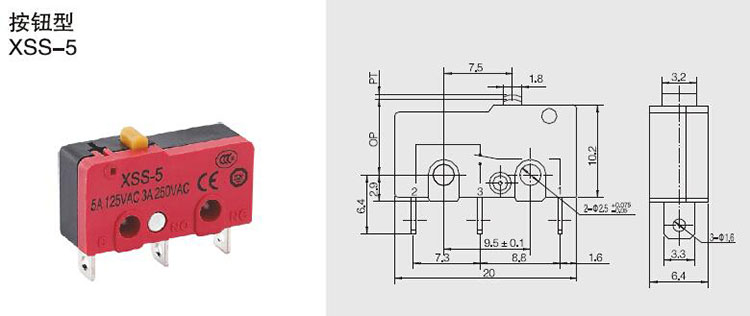

Dimensions/Operating Characteristics



OF max.动作力 160g(1.57N)
RF min.回复力 25g(0.25N)
PT max.预行程 0.6mm
OT min.超行程 0.5mm
MD max.差行程 0.3mm
OP 动作位置 8.4±0.5mm
