Micro Switches Types XV-15-2C25

Micro Switches Types XV-15-2C25

  • Micro Switches Types XV-15-2C25
Quick Details

●Adopt thermosetting plastic or thermoplastic;
●Small contact gap,snap action,high sensitivity and small operating travel;
●Variety of levers;
●Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro motion tool etc.

Model & Meanings

Contact Forms


Item Data
Operating speed 0.1mm-1m/s
Operating frequency Mechanical 600times/min
Electrical 30times/min
Insulation resistance 100MΩ (Above) DC500V
Contact resistance 25mΩ(initial value)
Withstand voltage Non-connection wire 1000VAC
Every terminal 1500VAC
Vibration Misoperation 10-55Hz Amplitude 1.5mm
Impact Durable 1000m/s2
Misoperation 300m/s2
Life Electrical 100,000 time above
Mechanical 1,000,000 time above
Protection degree IP40
Operating temperature -25~+80℃
Operating humidity <85%


Ue(V) Ie(A)  Ith(A)
AC-250 16 20

Mounting Hole Dimensions & Strucutre


Terminal Forms

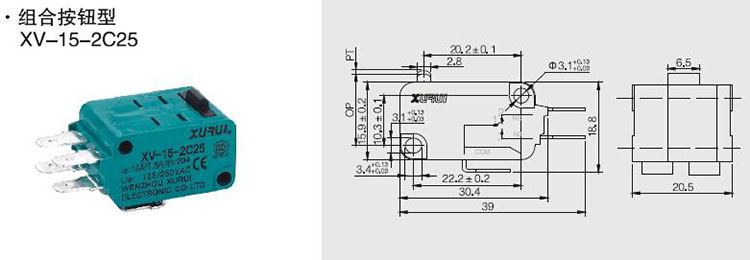

Dimensions/Operating Characteristics

OF max. 400g(3.92N)
RF min. 80g(0.78N)
PT max. 1.2mm
OT min. 0.6mm
MD max. 0.5mm
OP 14.7±0.4mm
