Limit Switch XZ-9509

Limit Switch XZ-9509

Information
  • Limit Switch XZ-9509
Quick Details

·Strong Zinc cast outer shell, strong structure and high mechanical strength;
·Preventing oil and water ;
·Double way switch, double spring inner switch;
·Variety of levers;
·Widely used in Mechanical equipment ,automatic machine, and instrument, electro motion tool etc.

Model & Meanings

Contact Form & Mounting Holes Dimensions

Specification

项目  Item 参数值  Data
额定负荷 Rating load AC-15
操作速度 Operation speed 10(4)A/250VAC,6(2)A 380VAC
操作频率 Operation frequency 机 械  Mechanical 5mm-0.5m/s
电 气  Electrical 30次/分 30times/min
绝缘电阻 Insulation resistance 100mΩ以上(Above) DC500V
绝缘电阻 Contact resistance 25mΩ初值 initial value)
介质耐压 Withstand voltage 非连线  Non-connection wire 1000VAC
各端子间  Every terminal 1500VAC
振动 Vibration 误动作 Misoperation 10-55Hz Amplitude(复振幅)1.5mm
冲击 Impact 耐 久 Durable 1000m/s2
误动作  Misoperation 300m/s2
寿命 Life 电 气  Electrical 100,000次以上 above
机 械  Mechanical 1,000,000次以上 above
防护等级 Protection degree IP65
使用温度 Operating temperature -10~+70℃
使用湿度 Operating humidity <85%

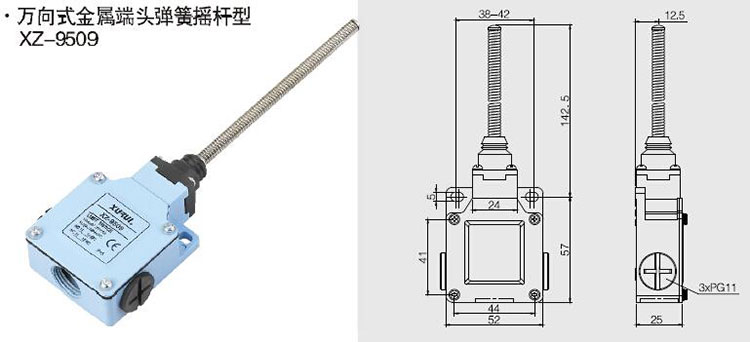

Dimensions/Operating Characteristics

OF max.动作力 100g(0.98N)
RF min.回复力 30g(0.29N)
PT max.预行程 28mm
OT min.超行程 20mm
MD max.差行程 10mm
TT 总行程 48mm
