PDFQuick Details
·Economic plastic housing, light weight;
·Preventing oil and water ;
·Double way switch, double spring inner switch;
·Variety of levers;
·Widely used in Mechanical equipment ,automatic machine, and instrument, electro motion tool etc.
Model & Meanings
Contact Form & Mounting Holes Dimensions
Specification
| Item | Data | |
| Rating load | 10(4)A/250VAC,6(2)A 380VAC | |
| Operation speed | 5mm-0.5m/s | |
| Operation frequency | Mechanical | 120times/min |
| Electrical | 30times/min | |
| Insulation resistance | 100mΩ(Above) DC500V | |
| Contact resistance | 25mΩ （initial value) | |
| Withstand voltage | Non-connection wire | 1000VAC |
| Every terminal | 1500VAC | |
| Vibration | Misoperation | 10-55Hz Amplitude 1.5mm |
| Impact | Durable | 1000m/s2 |
| Misoperation | 300m/s2 | |
| Life | Electrical | 100,000 above |
| Mechanical | 1,000,000 above | |
| Protection degree | IP65 | |
| Operating temperature | -10~+70℃ | |
| Operating humidity | <85% | |
Product Structure

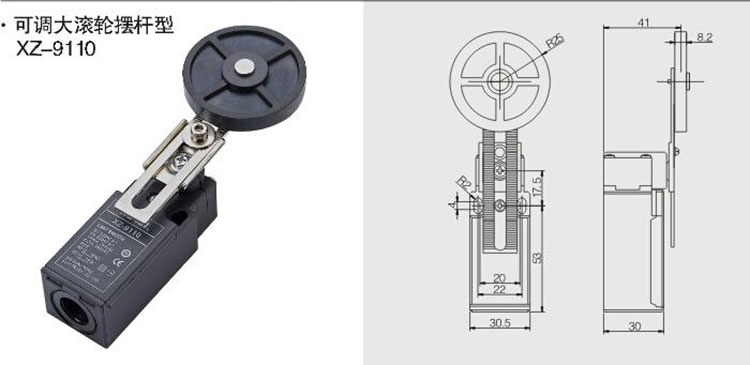

Dimensions/Operating Characteristics
| OF max. | 500g(4.9N) |
| RF min. | 80g(0.78N) |
| PT max. | 30° |
| OT min. | 70° |
| MD max. | 15° |
| TT | 90° |
