Micro Limit Switch XZ-8/112

Micro Limit Switch XZ-8/112

Information
  • Micro Limit Switch XZ-8/112
Quick Details

● Strong structure,made of zinc metal alloy and plastics,easy to contact line;
● Small size,water and oil resistant;
● Double way switch,double spring inner switch;
● Variety of levers;
● Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.

Model & Meanings

Mounting Holes & Contact Form

Product Structure

Specification

项目 Item 参数值  Data
额定负荷  Rating load 5A/250VAC
操作速度  Operation speed 5mm-50cm/s
操作频率  Operation frequency 机 械  Mechanical 120次/分 120times/min
电 气  Electrical 30次/分 30times/min
绝缘电阻  Insulation resistance 100mΩ以上(Above) DC500V
接触电阻  Contact resistance 25mΩ初值 initial value)
介质耐压  Withstand voltage 非连线  Non-connection wire 1000VAC
各端子间  Every terminal 1500VAC
振 动  Vibration 误动作 Misoperation 10-55Hz Amplitude(复振幅)1.5mm
冲 击  Impact 耐 久 Durable 1000m/s2
误动作  Misoperation 300m/s2
寿 命  Life 电 气  Electrical 100,000次以上 above
机 械  Mechanical 1,000,000次以上 above
防护等级   Protection degree IP65
使用温度  Operating temperature -20~+60℃
使用湿度  Operating humidity <85%

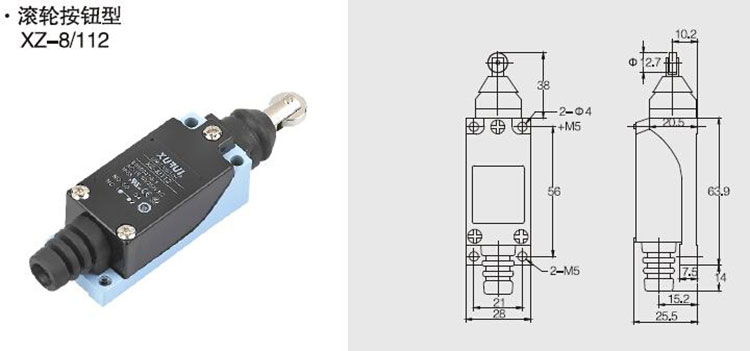

Dimensions/Operating Characteristics

OF max.动作力 1100g(10.78N)
RF min.回复力 250g(2.45N)
PT max.预行程 2mm
OT min.超行程 0.6mm
MD max.差行程 1mm
OP 动作位置 37±0.8mm
