PDFQuick Details
●Adopt outer shell with intensive plastic and sealed construction,better mechanical stength and weater-proof and oil-proof;
● Side fixed form and swift contact;
● Variety of levers;
● Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.
Model & Meanings
Mounting Holes & Contact Form
Product Structure
Specification
| Item 项目 | 参数值 Data | |
| Rating load 额定负荷 | 10A/250VAC | |
| Operation speed 操作速度 | 0.1mm-50cm/s | |
| Operation frequency 操作频率 | 机 械 Mechanical | 120次/分 120times/min |
| 电 气 Electrical | 20次/分 20times/min | |
| Insulation resistance 绝缘电阻 | 100mΩ以上(Above) DC500V | |
| Contact resistance 接触电阻 | 25mΩ初值 initial value) | |
| Withstand voltage 介质耐压 | 非连线 Non-connection wire | 1000VAC |
| 各端子间 Every terminal | 1500VAC | |
| Vibration 振动 | 误动作 Misoperation | 10-55Hz Amplitude（复振幅）1.5mm |
| Impact 冲击 | 耐 久 Durable | 1000m/s2 |
| 误动作 Misoperation | 300m/s2 | |
| Life 寿命 | 电 气 Electrical | 100,000次以上 above |
| 机 械 Mechanical | 1,000,000次以上 above | |
| Protection degree 防护等级 | IP65 | |
| Operating temperature 使用温度 | -10~+80℃ | |
| 使用湿度 Operating humidity | <85% | |

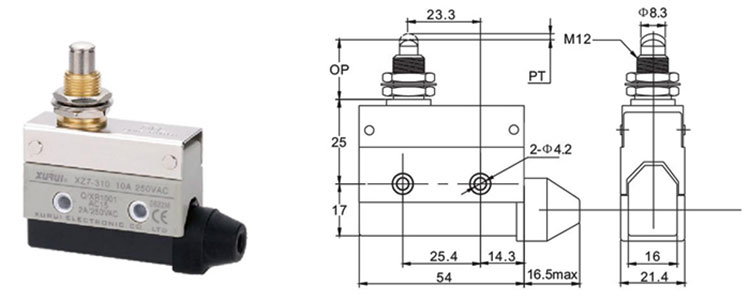

Dimensions/Operating Characteristics
| OF max.动作力 | 400g(3.92N) |
| RF min.回复力 | 60g(0.59N) |
| PT max.预行程 | 2mm |
| OT min.超行程 | 4mm |
| MD max.差行程 | 1mm |
| OP 动作位置 | 23±1.2mm |
