Limit Switch XZ-5/101

Limit Switch XZ-5/101

Information
  • Limit Switch XZ-5/101
Quick Details

● Strong Zinc cast outer shell,strong structure and high mechanical strength;
● Preventing oil,water and pressure;
● Double way switch,double spring inner switch;
● Variety of levers;
● Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.

Model & Meanings

Mounting Holes & Contact Form

Product Structure

Specification

项目  Item 参数值  Data
额定负荷 Rating load 10A/250VAC
操作速度 Operation speed 1mm-1m/s
操作频率 Operation frequency 机 械  Mechanical 120次/分 120times/min
电 气  Electrical 30次/分 30times/min
绝缘电阻 Insulation resistance 100mΩ以上(Above) DC500V
绝缘电阻 Contact resistance 25mΩ初值 initial value)
介质耐压 Withstand voltage 非连线  Non-connection wire 1000VAC
各端子间  Every terminal 1500VAC
振动 Vibration 误动作 Misoperation 10-55Hz Amplitude(复振幅)1.5mm
冲击 Impact 耐 久 Durable 1000m/s2
误动作  Misoperation 300m/s2
寿命 Life 电 气  Electrical 100,000次以上 above
机 械  Mechanical 1,000,000次以上 above
防护等级 Protection degree IP66
使用温度 Operating temperature -10~+80℃
使用湿度 Operating humidity <85%

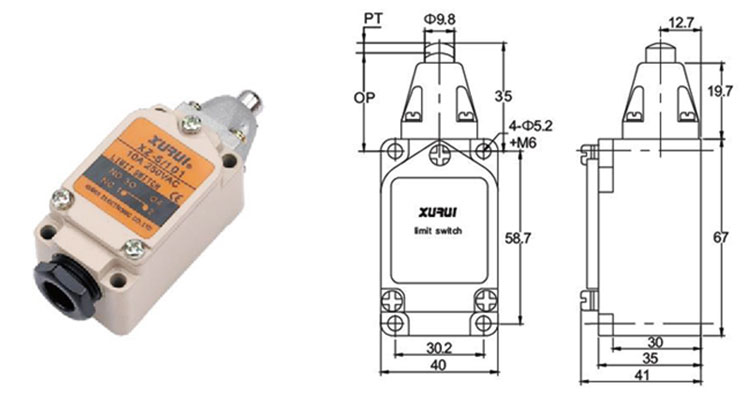

Dimensions/Operating Characteristics

OF max.动作力 2750g(26.95N)
RF min.回复力 900g(8.82N)
PT max.预行程 1.7mm
OT min.超行程 4mm
MD max.差行程 1.2mm
OP 动作位置 34±0.8mm
