Foot Switch XF-201D

Foot Switch XF-201D

  • Foot Switch XF-201D
Quick Details

● Kinds of shell’s material for choice,such as engineering plastic,steel panel,aluminium alloy,etc;
● Metal shell use the stregenthening to reast the surfase,bears the impact,the wearability,thermostable;
● Cable lock-in jacket is made for the cable coming out and it is waterproof,grease proofing;
● Switch bottom is equipped with the rubber pad,for skidproof;
● Widely used for control in industrial automation equipments,transport,pressing,medical treatment,test and etc.

 Model & Meanings

Basic parameters

接触电阻 Contact resistance 25mΩ(初值 initial value)
绝缘电阻 Insulation resistance 100mΩ以上(Above) DC500V
介质耐压 Withstand voltage ≥2000VAC
机械寿命 Mechanical Life 1,000,000次以上 above
电气寿命 Electrical Life 100,000次以上 above
使用温度 Operating temperature -20~+70OC
使用湿度 Operating Humidity ≤85%

Contact Forms

Application attentions
·According to the difference of load and current value, rated load should be taken note. Current value of this series is 10A、15A and 16A
·When transporting and moving, pls take note of the short circuit or open circuit may happen in internal wiring;
·Please take note of the level of protection when used in water, oil and bug dust. This series has protective type and unprotective type
·The immediate cause for broken is stress and attack, please pay attention;
·Warning mark'Danger! High Voltage!' and'Take note!' remind us pay attention to personnel safety and correctly operation.

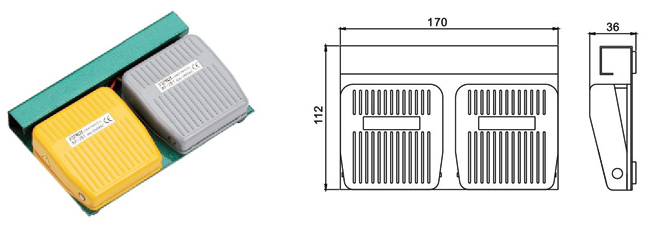

Dimensions / Specification

材 质  Material ABS工程塑料(Plastic)
内置开关 Inner Switch XV-15-1C25
额定负载 Rating Load 10A/250VAC
触点形式 Contact Form 1C×2
引出电缆 Outgoing Cable 0.5mm2×6(Wire)×0.25m
防护等级 Protection Degree IP54
