You're specifying a switching component for equipment that operates in demanding conditions—high ambient temperatures, continuous cycling, and heavy electrical loads. A micro switch that can't handle these conditions becomes a failure point that compromises the entire system. The XZ-15 series general-purpose micro switch from XURUI was engineered for high-load, high-temperature, and heavy-duty applications: a phenolic resin housing that withstands heat, 15A AC load capacity for high-power circuits, and ≥1,000,000 mechanical operations for long-term reliability. This article walks through what makes this switch capable of handling extreme conditions—from the heat-resistant housing material to the robust electrical ratings that support heavy loads.
What Makes a Micro Switch Suitable for High-Temperature Environments?
Phenolic Resin Housing — Engineered for Heat Resistance
The XZ-15 series features a phenolic resin housing, a material chosen for its thermal stability and durability. Unlike standard plastics that can soften or deform under high temperatures, phenolic resin maintains its structural integrity. This makes the switch suitable for applications where heat is a constant factor—inside appliances, near motors, or in industrial equipment.
Operating Temperature Range That Covers Demanding Applications
The switch operates reliably from -25°C to +80°C. This range covers everything from cold storage environments to hot industrial settings. For equipment that operates in unheated spaces or near heat sources, this temperature tolerance ensures consistent performance.
How Does the Switch Handle Heavy Electrical Loads?
15A AC Rating for High-Power Circuits
The XZ-15 series is rated for 15A at 125/250VAC, making it suitable for high-load equipment and appliance control. For DC applications, it handles 0.6A at 125VDC and 0.3A at 250VDC. This dual AC/DC capability covers a wide range of power switching requirements—from HVAC equipment to industrial machinery.
IP40 Protection for Industrial Environments
The switch carries an IP40 protection rating. This provides protection against solid objects larger than 1mm, making it suitable for industrial environments where dust and debris are present. The phenolic housing adds an extra layer of durability against mechanical impact.
What Keeps the Switch Reliable Through Millions of Cycles?
Snap-Action Mechanism for Consistent Switching
The XZ-15 series features a snap-action switching mechanism with small contact gap design that delivers high sensitivity and rapid response. The snap-action mechanism forces the contacts to open or close at a specific point, ensuring consistent switching performance regardless of actuation speed. Operating speed ranges from 1mm/s to 1m/s, accommodating both slow and fast actuation.
Million-Cycle Durability
The switch is rated for ≥1,000,000 mechanical operations and ≥100,000 electrical operations. In a typical application cycling once per minute, 1 million operations represents nearly two years of continuous 24/7 operation. The phenolic resin housing and precision contacts contribute to this long service life.
What Actuator Options Are Available for Different Applications?

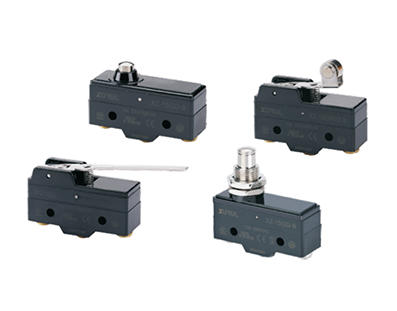

Button, Lever, and Roller Formats
The XZ-15 series offers button, lever, and roller actuator formats. This variety allows you to select the actuator type that best matches your mechanical interface—whether you need a plunger for direct actuation, a lever for cam or slide operation, or a roller for smooth, low-friction contact.
Matching the Actuator to the Application
-
Button actuators are ideal for direct mechanical contact where a simple push action is required.
-
Lever actuators provide flexibility for cam, slide, or rotational actuation.
-
Roller actuators reduce friction and wear, making them suitable for high-cycle applications.
Specifications at a Glance — XZ-15 Series
| Parameter | XZ-15 Series Specification |
|---|---|
| Rated Load (AC) | 15A at 125/250VAC |
| Rated Load (DC) | 0.6A at 125VDC; 0.3A at 250VDC |
| Protection | IP40 |
| Mechanical Durability | ≥1,000,000 operations |
| Electrical Durability | ≥100,000 operations |
| Operating Speed | 1mm/s to 1m/s |
| Operating Frequency | Mechanical: 240 times/min |
| Operating Temperature | -25°C to +80°C |
| Actuator Types | Button, lever, roller |
| Housing Material | Phenolic resin |
| Certifications | CE, TÜV, UL, KC, CCC, RoHS |
| Terminals | 3 bolt terminals |
Where High-Temperature, High-Load Switches Are Most Needed
The XZ-15 series serves multiple industries where reliable switching under demanding conditions is essential:
Home Appliances and HVAC Equipment
In appliances—microwave ovens, refrigerators, washing machines, and HVAC systems—micro switches provide door interlock, position sensing, and control switching. The 15A AC rating handles the power requirements of these applications, while the phenolic housing withstands the heat generated by motors and compressors.
Industrial Automation and Control
On automated production lines, micro switches serve as limit switches and position sensors. They detect the presence or position of parts, confirm the status of machine guards, and provide end-of-travel sensing. The wide temperature range and high mechanical durability make the XZ-15 series suitable for these demanding environments.
Automotive Electronics and Power Equipment
In automotive and power equipment applications, micro switches are used in systems where reliability is critical. The wide operating temperature range of -25°C to +80°C and international certifications make the XZ-15 series suitable for these applications.
Straight Answers on High-Temperature Micro Switches
Q: What is the maximum current rating of the XZ-15 series?
A: The switch is rated for 15A at 125/250VAC. For DC applications, it handles 0.6A at 125VDC and 0.3A at 250VDC.
Q: What is the operating temperature range?
A: The switch operates reliably from -25°C to +80°C.
Q: What is the mechanical life of the switch?
A: The switch is rated for ≥1,000,000 mechanical operations.
Q: What actuator types are available?
A: The series offers button, lever, and roller actuator formats.
Q: What certifications does the switch carry?
A: The XZ-15 series carries CE, TÜV, UL, KC, CCC, and RoHS certifications.
Q: What material is the housing made from?
A: The housing is made from phenolic resin, which provides heat resistance and durability.
Request a Quote for Your Switching Application
A micro switch that combines a 15A AC rating, heat-resistant phenolic housing, million-cycle durability, and international certifications is the foundation of any reliable switching application in demanding environments. The XZ-15 series general-purpose micro switch from XURUI delivers snap-action precision for consistent switching, button, lever, and roller actuator formats for installation flexibility, ≥1 million mechanical operations and ≥100,000 electrical operations for long-term reliability, and CE, TÜV, UL, KC, CCC, and RoHS certifications for global compliance.
Whether you're designing home appliances, industrial automation, automotive electronics, or power equipment, the XZ-15 series offers the heat tolerance and load capacity that engineers require in demanding applications. With over 20 years of expertise in micro switch manufacturing and customizable solutions available, XURUI provides the technical support to help you select the exact configuration for your application.
Contact XURUI for a quote or technical consultation → their team can help you select the right actuator type, terminal configuration, and model suffix for your specific switching requirements. Get a micro switch that handles the heat—and the load.
