You‘re designing a control circuit for a vending machine, a medical device, or an industrial automation system. The component that detects a door closing, a limit reached, or a button pressed is often a micro switch. It’s small. It‘s simple. And when it fails, the whole system stops.
A Micro Switch like the XMS Series (5A) from Xurui Electronic is built for reliable, repeatable switching in demanding environments. Rated for 5A at 125/250VAC, it delivers up to 1,000,000 mechanical operations and over 100,000 electrical cycles, with a compact design that fits tight spaces.
This guide covers what makes the XMS Series a solid choice for equipment manufacturers and control panel builders—from key technical specifications to application fit and procurement considerations. For engineers, purchasers, and maintenance professionals, this is a practical look at a component that may be small but plays a critical role in system reliability.
What You Get with the XMS Series
The XMS Series is a miniature snap-action micro switch designed for precision and durability. Here’s what the specifications tell you.
H3: Electrical Ratings That Cover Common Applications
The XMS Series is rated for 5A at 125VAC and 250VAC. This covers a wide range of common loads—solenoids, relays, small motors, and control circuits. The 5A rating makes it suitable for applications that don‘t require high current but demand reliable switching over thousands of cycles.
Mechanical and Electrical Life That Reduces Maintenance
With mechanical life of 1,000,000 operations and electrical life of 100,000 operations, the XMS Series is built to last. For equipment that runs continuously, this translates to fewer replacements and lower maintenance costs over the product’s lifetime. The operating frequency is 400 operations per minute mechanical and 30 operations per minute electrical.
Environmental Tolerance for Demanding Conditions
The XMS Series operates in temperatures from -25°C to +80°C and humidity up to 85%. With a protection degree of IP40, it‘s suitable for indoor applications where dust and incidental contact are the primary concerns. For equipment used in factories, commercial buildings, and controlled environments, this range covers most scenarios.
Multiple Actuator Options

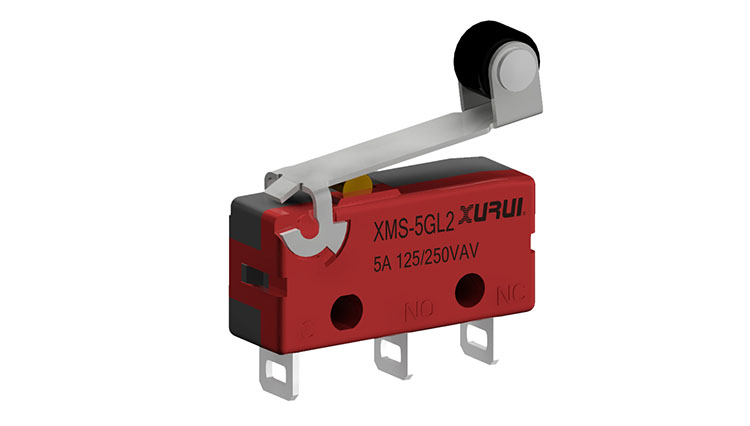

The XMS Series is available in several actuator configurations: XMS-5 (basic plunger), XMS-5GL (lever), XMS-5GL2 (roller lever), and XMS-5GL13 (long lever). The operating force ranges from 180g (1.76N) for the basic plunger down to 80g (0.78N) for lever and roller versions. This variety allows you to match the actuator to your specific mechanical interface.
Where the XMS Series Fits
Micro switches are found in more applications than you might expect. The XMS Series is well-suited for several common use cases.
Appliances and Consumer Equipment
Vending machines, coffee makers, dishwashers, and HVAC systems all use micro switches for door interlocks, limit detection, and mode selection. The 5A rating covers the control circuits in these applications without over-specifying.
Industrial Control Panels
In control panels, micro switches are used for panel door interlocks, selector switch detents, and position sensing. The compact size of the XMS Series makes it easy to integrate into tight panel layouts.
Medical and Laboratory Equipment
Medical devices and lab instruments require components that deliver consistent, repeatable performance. The XMS Series’ electrical life of 100,000 operations provides the reliability that medical applications demand.
Security and Access Systems
Door position sensors, lock status indicators, and tamper detection circuits often rely on micro switches. The XMS Series’ operating temperature range of -25°C to +80°C covers both indoor and sheltered outdoor applications.
Key Specifications at a Glance
| Parameter | XMS Series (5A) |
|---|---|
| Rating Load | 5A 125/250VAC |
| Operation Speed | 0.1mm – 1m/s |
| Mechanical Frequency | 400 times/min |
| Electrical Frequency | 30 times/min |
| Insulation Resistance | ≥100MΩ at DC500V |
| Contact Resistance | ≤30mΩ (initial value) |
| Withstand Voltage | 1000VAC (non-connection wire) / 1500VAC (each terminal) |
| Mechanical Life | 1,000,000 operations |
| Electrical Life | 100,000 operations |
| Protection Degree | IP40 |
| Operating Temperature | -25°C to +80°C |
| Operating Humidity | <85% |
| Actuator Options | Plunger, lever, roller lever, long lever |
| Operating Force | 80g – 180g (0.78N – 1.76N) |
Questions Engineers and Buyers Ask
What is the difference between mechanical life and electrical life?
Mechanical life is the number of operations the switch can perform without electrical load—just the mechanical actuation of the contacts. Electrical life is the number of operations the switch can perform under its rated electrical load (5A at 125/250VAC). The XMS Series offers 1,000,000 mechanical operations and 100,000 electrical operations. The electrical life is lower because switching under load causes contact wear that doesn‘t occur during unloaded mechanical operation.
What does IP40 protection mean for a micro switch?
IP40 means the switch is protected against solid objects larger than 1mm (tools, wires) but has no protection against water ingress. It’s suitable for indoor applications where the switch is housed inside equipment and not exposed to water or heavy dust. For applications requiring water resistance, a higher IP rating would be needed.
How do I choose the right actuator for my application?
The actuator determines how the switch is mechanically triggered. A basic plunger (XMS-5) is suitable when the actuating force comes directly from a moving part. A lever (XMS-5GL) is used when the actuating motion is at an angle to the switch. A roller lever (XMS-5GL2) reduces friction and wear when the actuating surface moves across the lever. The choice depends on your mechanical interface.
What is the significance of the operating force specification?
Operating force is the amount of force required to actuate the switch. The XMS Series offers forces from 80g to 180g depending on the actuator type. A lower operating force is desirable when the actuating mechanism has limited force available. A higher force provides more positive tactile feedback and is less likely to be actuated by vibration or accidental contact.
Why Xurui Electronic Is a Supplier Worth Considering
Choosing the right micro switch is about more than just the specifications—it’s about the manufacturer behind the component.
Xurui Electronic is a professional micro-switch manufacturer with more than 30 years of production experience. The company is ISO 9001 certified, operates an independent factory, and offers custom design services. Their product range includes the XMS Series (5A), XSS Series (5A), XCSK Series (16A), XV-10 Series (10A), and other switch types including toggle switches, limit switches, and foot switches.
For equipment manufacturers and control panel builders, working with an established supplier means consistent quality, reliable delivery, and technical support when you need it. Xurui Electronic‘s long track record in the industry provides the confidence that comes from decades of experience in switch manufacturing.
A micro switch is a small component, but its impact on system reliability is anything but small. The XMS Series (5A) delivers the electrical performance, mechanical durability, and actuator flexibility that OEMs and maintenance teams need. Whether you’re designing new equipment or sourcing replacement components, understanding the specifications and application fit is the key to making the right choice.
Ready to evaluate the XMS Series for your next project? Reach out to Xurui Electronic‘s team—they can provide detailed specifications, sample configurations, and custom design options based on your specific switching requirements.
