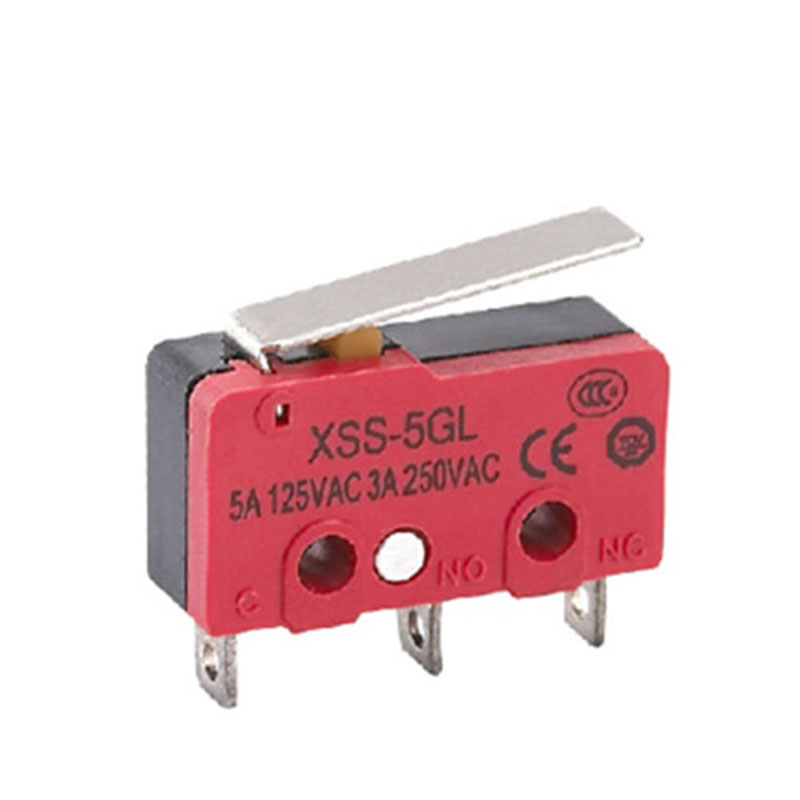

You're designing a control circuit for an appliance, an automotive system, or an industrial machine. The circuit needs to detect a mechanical position and switch instantly — every time, without fail. A micro switch is the component that does exactly that: a snap-action mechanism that delivers instantaneous switching with minimal operating travel. The XSS-5GL is a precision micro limit switch designed for exactly these applications — with a small contact gap, snap-action mechanism, and high sensitivity. This guide covers what makes a snap-action micro switch different, the key specifications that determine performance, and how to select the right one for your application.
Instant Switching with Minimal Travel – The Snap-Action Mechanism That Defines Precision
The defining characteristic of a micro switch is its snap-action mechanism. Unlike other switches that require a full stroke to change state, a micro switch uses a spring-loaded mechanism that snaps the contacts open or closed at a precise point in the actuator's travel. This provides several advantages: the switching action is instantaneous regardless of how slowly the actuator moves; the operating travel is very small, typically just 1-2mm; the contacts switch cleanly, reducing arcing and extending contact life; and the switch provides a crisp, tactile feedback that confirms operation. The XSS-5GL delivers a snap-action mechanism with high sensitivity and small operating travel, making it ideal for applications where precise positioning is critical.
Small Contact Gap and Snap Action
The small contact gap in the XSS-5GL ensures reliable switching even in low-energy circuits where contact contamination could otherwise cause failure. The snap-action mechanism guarantees that the contacts move from one position to the other with a single, clean motion, eliminating the uncertainty of slow-moving contacts.
Variety of Lever Options for Different Actuation Needs
Different applications require different actuation methods. The XSS-5GL is available with a variety of levers—pin plunger, roller lever, and leaf lever configurations—to match your specific mechanical interface. This flexibility allows the same switch to be used across different equipment without redesigning the actuation mechanism.
5A/125VAC, 1,000,000 Mechanical Operations – The Specs That Define Long-Term Reliability
The XSS-5GL is rated for 5A/125VAC and 3A/250VAC, with an operating speed range of 0.1mm-1m/s. The mechanical life exceeds 1,000,000 operations, while the electrical life is rated at 100,000 operations. This combination of ratings makes the switch suitable for applications requiring high-frequency operation over extended periods.
Electrical Ratings – Matching the Switch to Your Load
The 5A/125VAC and 3A/250VAC ratings cover a wide range of control circuit loads—from low-power signal circuits to direct control of small motors and solenoids. The switch's contact resistance is rated at 30mΩ initial value, ensuring low power loss at the contact interface.
Mechanical and Electrical Life – Long-Term Durability
The 1,000,000 mechanical operations rating ensures the switch can handle the frequent actuation cycles typical of appliances and industrial equipment. The 100,000 electrical operations rating accounts for the wear caused by arcing during switching, providing a realistic expectation of service life under load.
Operating Speed Range – Flexibility Across Applications
The 0.1mm-1m/s operating speed range means the switch can be actuated by slow-moving mechanisms—such as cam followers and temperature sensors—or by high-speed applications like automated machinery.
Thermosetting Plastic and Thermoplastic – Materials That Withstand Heat and Wear
The XSS-5GL is constructed with thermosetting plastic or thermoplastic materials, providing excellent heat resistance and mechanical strength. The materials are chosen for their dimensional stability, ensuring the switch maintains its precision over millions of operations.
Thermosetting Plastic – Dimensional Stability Under Heat
Thermosetting plastics maintain their shape and mechanical properties even at elevated temperatures, making them suitable for applications where the switch is exposed to heat from the surrounding equipment.
Thermoplastic – Impact Resistance and Flexibility
Thermoplastics offer excellent impact resistance and design flexibility, allowing for the complex internal geometries required for snap-action mechanisms.
IP40 Protection – Suitable for Controlled Environments
The XSS-5GL offers IP40 protection, providing protection against solid objects larger than 1mm. This makes it suitable for applications in controlled environments where dust and moisture are not a primary concern.
From Appliances to Automotive – Where Precision Switching Makes the Difference
Micro switches are used across a wide range of industries and applications where precise position sensing is required:
-
Appliances: Detecting door positions in microwaves, refrigerators, and washing machines; sensing mechanical limits in dishwashers and dryers
-
Electronic equipment: Detecting cover or panel positions in consumer electronics and office equipment
-
Automatic machinery: Sensing end-of-travel positions in conveyors, packaging machines, and material handling systems
-
Communication equipment: Detecting switch positions in telecom and networking devices
-
Automotive: Detecting pedal positions, door positions, and gear positions in vehicles
-
Apparatus and instruments: Position sensing in measurement and testing equipment
-
Electro motion tools: Detecting trigger positions and mechanical limits in power tools
Key Specifications at a Glance
| Specification | XSS-5GL Value | Why It Matters |
|---|---|---|
| Rating load | 5A/125VAC, 3A/250VAC | Matches control circuit requirements |
| Operating speed | 0.1mm-1m/s | Suits slow or fast actuation |
| Mechanical life | 1,000,000 operations | Long-term durability |
| Electrical life | 100,000 operations | Realistic service life under load |
| Insulation resistance | ≥100MΩ at DC500V | Prevents leakage current |
| Contact resistance | ≤30mΩ initial | Low power loss |
| Withstand voltage | 1000-1500VAC | Dielectric strength |
| Protection degree | IP40 | Suitable for controlled environments |
| Operating temperature | -25°C to +80°C | Wide temperature adaptability |
| Operating humidity | <85% | Corrosion resistance |
What Engineers Want to Know Before Specifying a Micro Switch
What is the electrical rating of the XSS-5GL?
The switch is rated for 5A/125VAC and 3A/250VAC. This covers most control circuit applications from signal switching to small motor control.
What is the operating speed range?
The switch operates at speeds from 0.1mm to 1m/s, making it suitable for both slow and fast actuation applications.
What is the mechanical life expectancy?
The XSS-5GL offers a mechanical life of 1,000,000 operations, ensuring long-term reliability even with frequent actuation.
What lever options are available?
The switch is available with a variety of levers—pin plunger, roller lever, and leaf lever configurations—to match different mechanical interfaces.
What is the temperature range?
The operating temperature range is -25°C to +80°C, covering most industrial and appliance applications.
Get the Right Specs for Your Control Circuit
Selecting a micro switch comes down to three factors: electrical rating (match your load), actuator type (match your mechanical interface), and operating environment (match your temperature and protection requirements). Contact Xurui for technical support and samples → —their team can help you select the right XSS-5GL configuration for your specific application.
Xurui (Zhejiang Xurui Electronic Co., Ltd.) is a manufacturer of industrial control switches with over 15 years of experience in the electrical industry. The Micro Limit Switch XSS-5GL features a snap-action mechanism with small contact gap and high sensitivity, rated 5A/125VAC and 3A/250VAC, with 1,000,000 mechanical operations and 100,000 electrical operations. Available with a variety of lever options including pin plunger, roller lever, and leaf lever configurations. Applications include appliances, electronic equipment, automatic machinery, communication equipment, automotive, apparatus and instruments, and electro motion tools. Xurui provides comprehensive technical support, samples, and after-sales service. Connect with Xurui to discuss your electrical rating requirements, actuator type preferences, and application conditions.
