LN30Y

LN30Y

Information
  • LN30Y
Quick Details

·The cover is made of thermoplastic and brass alloy.
·The sensor built in over-load protection,short-circuit protection, reverse-connection protection and surge absorbing circuits.
·Multiple connect options ,flexible and convenient installation .
·Protection degree can reach to IP67,water-proof,oil-proof and dust-proof.
·LED indicates work condition.
·Widely used in water lever and liquid lever detection , industrical automatic production line dection,safety detection,position detection and alarm appliance diction, etc.

Model & Meanings

Connection Diagram

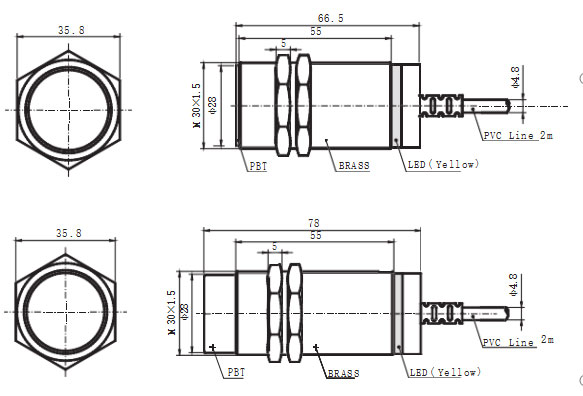

Specification

产品型号  Model LN30Y-Z10NK LN30Y-Z10NB LN30Y-Z15NK LN30Y-Z15NB
LN30Y-Z10PK LN30Y-Z10PB LN30Y-Z15PK LN30Y-Z15PB
LN30Y-Z10DK LN30Y-Z10DB LN30Y-Z15DK LN30Y-Z15DB
LN30Y-A10AK LN30Y-A10AB LN30Y-A15AK LN30Y-A15AB
安装方式  Mounting 屏蔽式 Shield 非屏蔽式 Non shield
最大检测距离 Max. Sensing Distance 10mm±10% 15mm±10%
稳定检测范围 Stable Sensing Area 0-9mm 0-13.5mm
工作频率 Operating Frequency  0.4KHz(AC 20Hz) 0.3KHz(AC 20Hz)
标准检出物 Standard Detected Object    30×30×1mm(铁Iron)
工作电压 Supply Voltage  10-30VDC/80-265VAC(纹波Ripple<10%)
漏电流 Leakage Current  <0.6mA
应差距离 Movement Differential <10mm×10% <15mm×10%
消耗电流  Consumption Current  15mA
负载电流 Load Current  200mA
残留电压 Voltage Drop <3V
工作温度 Operating Temperature  -25~80℃
抗冲击 Impact 50m/s
抗振动 Vibration  10-55Hz 振幅 Amplitude 1MM
连接方式  Connection Type  引线 PVC cable 2m
外壳材料 Housing Material 黄铜镀镍 Nickel plated brass
检测面材料 Sensing Surface Material PBT



Installation Conditions

 Non shielded proximity switches can achieve maximum operating distance (with the diameter of the relevant); but in order to prevent the switch around the metal impact on the switch, the sensor head must be in a certain gap with the surrounding metal (Figure 1).

Due to the special shielding effect inside the shield, the radialmagnetic field of the side is reduced, and the induction distance is about 60% of the non shield type, because it can be flush mounted inthe metal (Figure 2).

The magnetic sensor is not affected by the conditions ofinstallation, as long as the material around the material is notmagnetized.
