Micro Switch XZ-15GD-B

Micro Switch XZ-15GD-B

  • Micro Switch XZ-15GD-B
Quick Details

● Adopt thermostable phenolic plastic crust;
● Small contact gap,snap action,high sensitivity and small operating travel;
● Variety of levers;
● Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro motion tool etc.

Model & Meanings

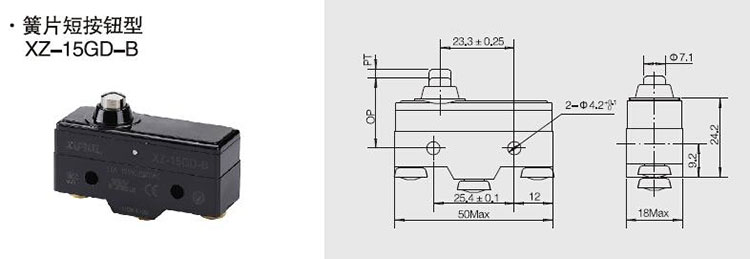

Mounting Hole Dimensions & Product Structure


项目 Item 参数值  Data
操作速度 Operating speed 1mm-1m/s
操作频率 Operating frequency 机 械  Mechanical 240次/分 240 times/min
电 气  Electrical 20次/分 20 times/min
绝缘电阻 Insulation resistance 100MΩ以上(Above) DC500V
接触电阻 Contact resistance 25mΩ(初值 initial value)
介质耐压 Withstand voltage 非连线 Non-connection wire 1000VAC
各端子间  Every terminal 1500VAC
振动 Vibration 误动作  Misoperation 10-55Hz  Amplitude(复振幅)1.5mm
冲击 Impact 耐 久  Durable 1000m/s2
误动作  Misoperation 300m/s2
寿命 Life 电 气  Electrical 100,000次以上 above
机 械  Mechanical 1,000,000次以上 above
防护等级 Protection degree IP40
使用温度 Operating temperature -25~+80℃
使用湿度 Operating humidity <85%


额定值 Rating
额定电压Ue(V) 额定电流Ie(A) 发热电流Ith(A)
AC-250 15 20
AC-125 15 20
DC-250 0.3 0.45
DC-125 0.6 0.75

 Contact Form

Terminal Form

Dimensions/Operating Characteristics

OF max.动作力 250-350g(2.45-3.43N)
RF min.回复力 114g(1.12N)
PT max.预行程 0.5mm
OT min.超行程 1.6mm
MD max.差行程 0.1mm
OP 动作位置 21.5±0.5mm
